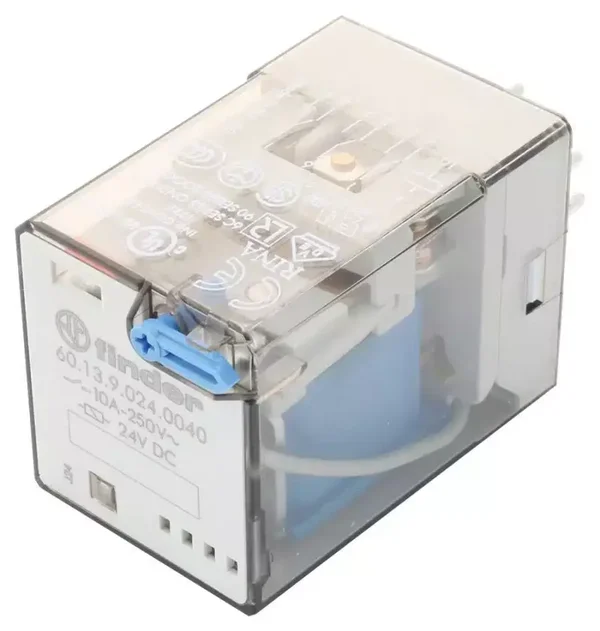

FINDER 601390240040

Industrial relay Undecal Finder Type 60.13, with the following features:

• Supply voltage (50/60 Hz) AC 24V, DC 24V
• Rated power AC/DC VA (50 Hz) 2.2/1.3W
• Rated/Max instantaneous current 10/20 A
• Rated load in AC1:2500 VA
• Rated load in AC15 (230 V AC) 500VA
• Contact configuration: 3 exchanges 10A
  • Single-phase motor capacity (230V AC) 0.37kW
  • Breaking capacity in DC1: 30/110/220V: 10/0.4/0.15
  • Minimum switching load mW (V/mA) 500 (10/5)
  • Standard contact material AgNi
  • Operating range AC/DC 0.8 UN / 0.5 UN
  • Holding voltage AC/DC 0.8 UN / 0.5 UN
  • Release voltage AC/DC 0.2 UN / 0.1 UN
  • Electrical endurance at rated load in AC1 200 – 10 cycles
  • Mechanical endurance AC/DC 20 – 106 / 50 – 106 cycles
  • Switching time: excitation/de-excitation 11/4 ms
  • Insulation between coil and contacts (1.2/50 μs) 3.6 kV
  • Dielectric strength between open contacts 1000V AC
  • Ambient temperature: -40…+70°C
  • Protection category RT I

      Finder Series

• Cadmium-free contacts (preferred version)
• AC or DC coil
• UL Listing (relay/coil jumper)
• Contact material options
• A lockable test button and mechanical indicator (preferred version)
• 90 Series Sockets
• EMC Protection and Signaling Modules
• 86 Series Timer Modules
• European Patent

• AC & DC coils, including “current sensing” versions
• 8 & 11 pin plug-in
• Flange mount
• Available with lockable test button, mechanical flag & LED indicator
• Version with bifurcated contacts for low-level switching
• Alarm systems
• Automatic car-washes
• Bottling plant
• Burners, boilers, and furnaces
• Carousel warehouses
• Confectionary machines
• Control panels
• Control panels for pumps
• Control systems
• Discotheques, swimming pools and fountains
• Elevators and lifts
• Escalators
• Forced-air ventilators
• Heating systems and convectors
• Hoists and cranes
• Hospitals
• Industrial fans
• Industrial furnaces and ovens
• Industrial motors
• Industrial washing machines
• Infrared and microwave ovens
• Jacuzzis and hot tubs
• Machines for paper processing
• Milk processing plant
• Panels for electrical distribution
• Punches, cleaners, planers, and sanders
• Refrigerators
• Road/tunnel lighting
• Safety devices
• Shipyards
• Textile machines
• Ultrasonic cleaning machines
• Washing machines
• Wood-processing machines
