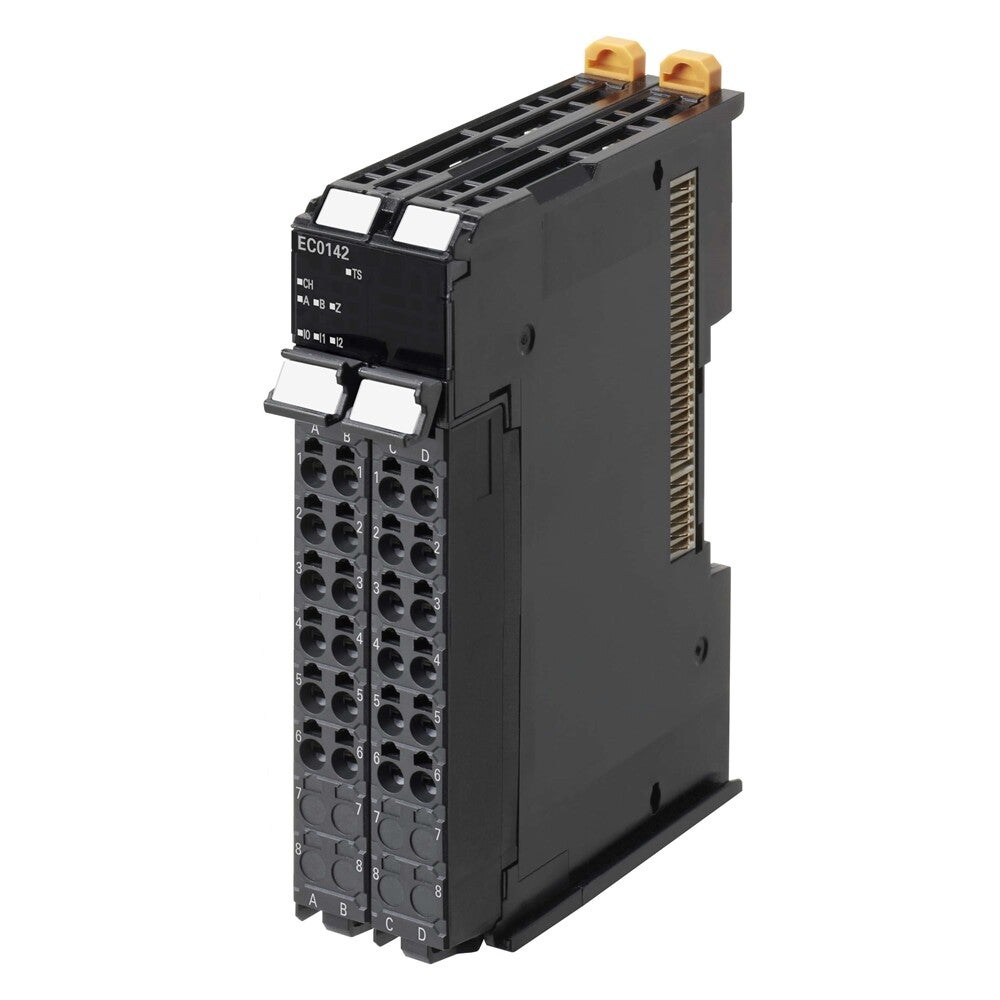

OMRON NX-EC0142 1 x Incremental Encoder Line driver Input, phases A and B: single-phase 4 MHz (phase difference pulse Input x4: 1 MHz), Phase Z: 1 MHz, PNP, screwless push-in connectors, 24 mm wide

I/O system NX I/O Bus
Type of module Encoder input
Digital input type Incremental encoder, Line driver (RS-422), PNP
Digital output type None
Signal processing Free running, Synchronous, Task period prioritized
Number of encoder input channels 1
Max. encoder input frequency 4000 kHz
Number of pulse output channels 0
Max. pulse output frequency 0 kHz
IO link master
I/O connection type Push-in
Number of I/O connectors 2
Detachable I/O connector
Suitable for safety functions
SIL according to IEC 61508 None
Number of IOV (V+) terminals 3
Number of IOG (V-) terminals 3
Degree of protection (IP) IP20
Height 100 mm
Width 24 mm
Depth 80 mm
Weight 147 g
