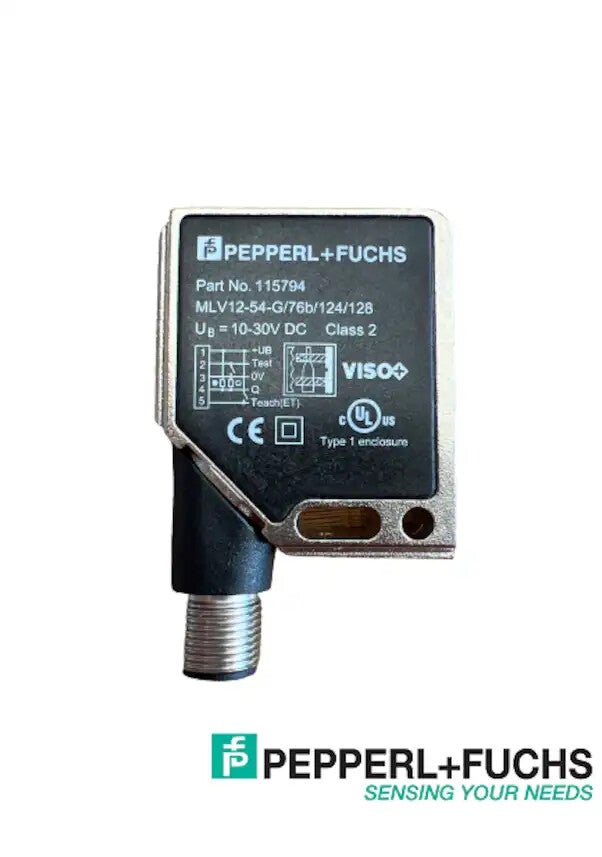

PEPPERL FUCHS MLV12-54-G76b124128
| Specifications | |
|---|---|
| Effective detection range | 0 … 4.2 m |
| Reflector distance | 0 … 4.2 m |
| Threshold detection range | 5.6 m |
| Reference target | H85-2 reflector |
| Light source | LED |
| Light type | modulated visible red light , 660 nm |
| Polarization filter | yes |
| Diameter of the light spot | approx. 110 mm at detection range 4.2 m |
| Opening angle | 1.5 ° |
| Ambient light limit | |
| Continuous light | 40000 Lux |
| Modulated light | 5000 Lux |
| Functional safety related parameters | |
| MTTFd | 1000 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 90 % |
| Indicators/operating means | |
| Operation indicator | LED green, flashes in case of short-circuit |
| Function indicator | 2 LEDs yellow for switching state, stability control, TEACH-IN and contrast detection mode |
| Control elements | rotary switch for light/dark, 5-step switch for contrast recognition adjustment |
| Contrast detection levels | 10 % – clean, water filled PET bottles18 % – clear glass bottles40 % – colored glass or opaque materialsadjustable by Teach-In key or external wire |
| Electrical specifications | |
| Operating voltage | 10 … 30 V DC |
| Ripple | max. 10 % |
| No-load supply current | max. 55 mA |
| Input | |
| Test input | emitter deactivation at 0 V ( Imax < 4mA at UB+ = 30 VDC ) |
| Function input | Ext. Teach-In input (ET) |
| Output | |
| Switching type | light/dark on switchable |
| Signal output | 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 0.2 A |
| Voltage drop | ≤ 2.5 V DC |
| Switching frequency | 1000 Hz |
| Response time | 0.5 ms |
