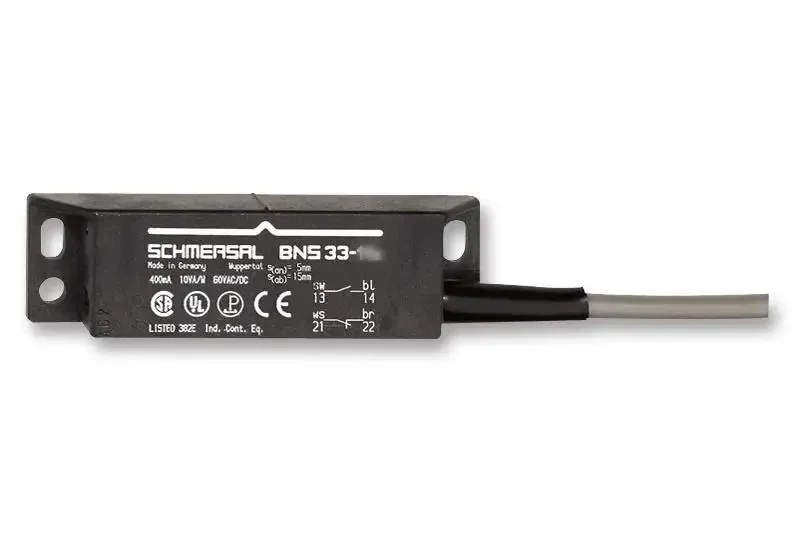

SCHMERSAL BNS 33-12Z
SCHMERSAL MAGNETIC SAFETY SENSOR
- Thermoplastic enclosure
- Concealed mounting possible
- Insensitive to transverse misalignment
- 88 mm x 25 mm x 13 mm
- Long life
- no mechanical wear
- Insensitive to soiling
| SPECIFICATIONS | |
|---|---|
| Norms, instructions | BG-GS-ET-14EN IEC 60947-5-3 |
| Coding level according to EN ISO 14119 | low |
| Effective rule | magnetic drive |
| Placement conditions (mechanical) | not in line |
| Material of bodies | Plastic, fiber glass reinforced thermoplastic |
| Gross weight | 62 g |
| Prerequisite evaluation unit | Yes |
| Number of openers | 2 |
| Number of curtains | 1 |
| material, effective area | side |
| commissioning element | Magnet |
| Note (Repeat Sensitivity R’ R) | NOTE_DIM_DIST_REPEAT_ACCURACYFMAW00000002 |
| Direction of motion | front to active surface |
| Provided switch distance “ON” | 5 mm-8 mm |
| Provided switch distance “OFF” | 15 mm-18 mm |
| connector, connector | Cable |
| Length or machine | 1 m |
| Line/wire cross section | 0.25 mm2 |
| Or machine diameter | 23 AWG |
| Material of cable cover | PVC |
| Sensor size | 13 mm |
| Width of the sensor | 88 mm |
| Height of the sensor | 25 mm |
| Protection class | IP67 |
| Ambient temperature, minimum | -25 °C |
| Ambient temperature, maximum | +70 °C |
| Storage and transport temperature, minimum | -25 °C |
| Storage and transport temperature, maximum | +70 °C |
| Vibration resistance according to EN 60068-2-6 | 10 … 55 Hz, Amplitude 1 mm |
| shock resistance | 30 g / 11 ms |
| witching voltage, maximum | 100 VAC |
| Switching voltage, maximum | 100 VDC |
| Switching current, maximum | 0,4 A |
| Switching capacity, maximum | 10 W |
| Switching frequency, maximum | 5 Hz |
