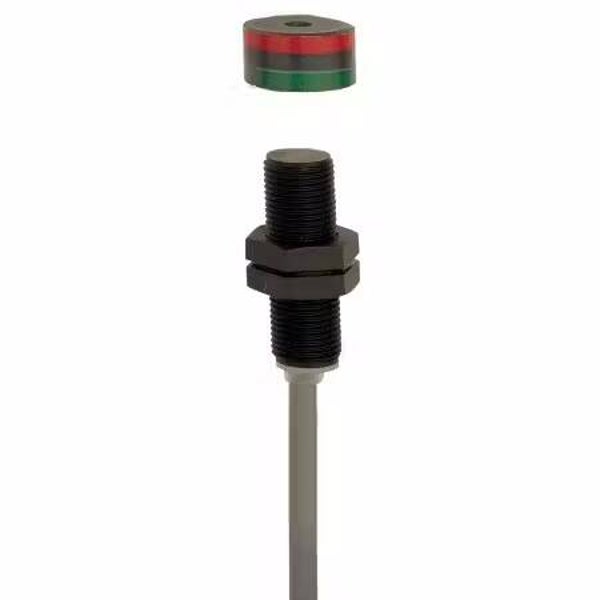

SCHMERSAL BNS180-02Z
SCHMERSAL MAGNETIC SAFETY SENSOR
- Thermoplastic enclosure
- Suitable for food processing industry only in combination with BP 15 SS
- Particularly large switching distance
- Ø M 18 x 1
- Long life
- no mechanical wear
- Insensitive to transverse misalignment
- Insensitive to soiling
| Standards | BG-GS-ET-14EN IEC 60947-5-3 |
| Coding level according to EN ISO 14119 | None |
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | quasi-flush |
| Enclosure material | Glass-fibre, reinforced thermoplastic |
| Gross weight | 64 g |
| Number of normally closed (NC) | 2 |
| Number of safety contacts | 2 |
| Number of cable wires | 4 |
| B10D Normally-closed contact (NC) | 25,000,000 Operations |
| Actuating element | Magnet |
| Switching distance actuator | Actuating magnet BP 6, Sao: 10 mmActuating magnet BP 6, Sar: 22 mmActuating magnet BP 8, Sao: 10 mmActuating magnet BP 8, Sar: 22 mmActuating magnet BP 10, Sao: 20 mmActuating magnet BP 10, Sar: 32 mmActuating magnet BP 15 SS, Sao: 20 mmActuating magnet BP 15 SS, Sar: 32 mm |
| Direction of motion | Head-on to the active surface |
| Assured switching distance “ON” Sao | 10 mm-20 mm |
| Assured switching distance “OFF” Sar | 22 mm-32 mm |
| Termination | Cable |
| Length of cable | 1 m |
| Wire cross-section | 0.25 mm2 |
| Wire cross-section | 23 AWG |
| Material of the Cable mantle | PVC |
| ISO thread of the sensor | M18 |
| Length of sensor | 36 mm |
| Degree of protection | IP67 |
| Ambient temperature, minimum | -25 °C |
| Ambient temperature, maximum | +70 °C |
| Storage and transport temperature, minimum | -25 °C |
| Storage and transport temperature, maximum | +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Switching voltage, maximum | 100 VAC |
| Switching voltage, maximum | 100 VDC |
| Switching current, maximum | 0.25 A |
| Switching capacity, maximum | 3 W |
| Switching frequency, maximum | 5 Hz |
