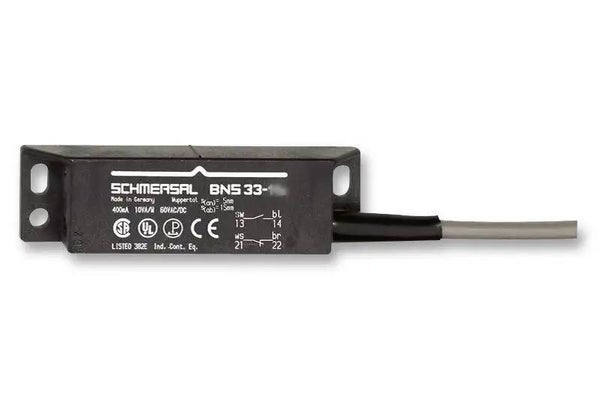

SCHMERSAL BNS33-11Z-ST
SCHMERSAL MAGNETIC SAFETY SENSOR
- Connector M8 x 1, 4-pole
- Thermoplastic enclosure
- Concealed mounting possible
- Insensitive to transverse misalignment
- 88 mm x 25 mm x 13 mm
- Long life
- no mechanical wear
- Insensitive to soiling
| SPECIFICATIONS | |
|---|---|
| Standards | BG-GS-ET-14EN IEC 60947-5-3 |
| Coding level according to EN ISO 14119 | Low |
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | not flush |
| Enclosure material | Glass-fibre, reinforced thermoplastic |
| Gross weight | 33 g |
| Prerequisite evaluation unit | Yes |
| Number of normally closed (NC) | 1 |
| Number of normally open (NO) | 1 |
| B10D– Value Normally-closed contact/Normally open contact (NC/NO) | 25,000,000 Operations |
| Active area | lateral |
| Actuating element | Magnet |
| Note (Repeat accuracy R) | NOTE_DIM_DIST_REPEAT_ACCURACYFMAW00000002 |
| Direction of motion | Head-on to the active surface |
| Assured switching distance “ON” Sao | 5 mm-8 mm |
| Assured switching distance “OFF” Sar | 15 mm-18 mm |
| Termination | Connector M8 |
| Length of sensor | 13 mm |
| Width of sensor | 88 mm |
| Height of sensor | 25 mm |
| Degree of protection | IP67 |
| Ambient temperature, minimum | -25 °C |
| Ambient temperature, maximum | +70 °C |
| Storage and transport temperature, minimum | -25 °C |
| Storage and transport temperature, maximum | +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Switching voltage, maximum | 60 VDC |
| Switching current, maximum | 0.4 A |
| Switching capacity, maximum | 10 W |
| Switching frequency, maximum | 5 Hz |
