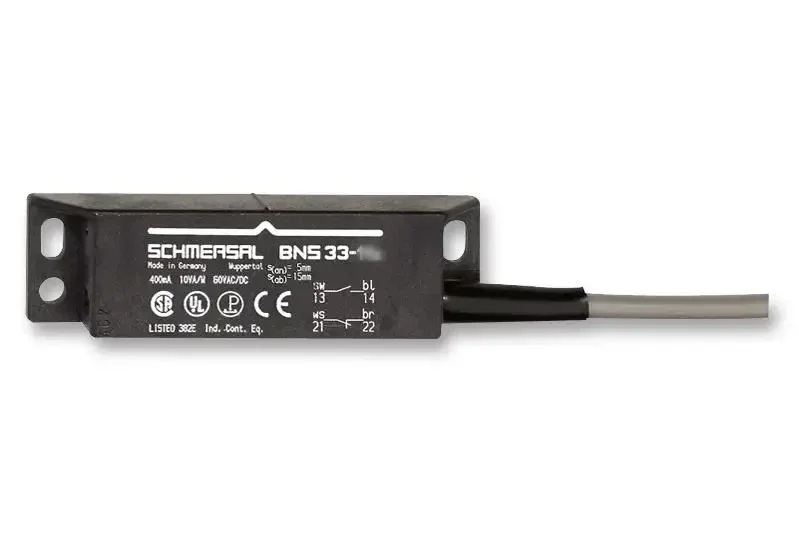

• Thermoplastic enclosure
  • Concealed mounting possible
  • Insensitive to transverse misalignment
  • 88 mm x 25 mm x 13 mm
  • Long life
  • no mechanical wear
  • Insensitive to soiling
Standards BG-GS-ET-14EN IEC 60947-5-3
Coding level according to EN ISO 14119 Low
Working principle Magnetic drive
Installation conditions (mechanical) not flush
Enclosure material Glass-fibre, reinforced thermoplastic
Gross weight 32 g
Prerequisite evaluation unit Yes
Number of normally closed (NC) 2
Number of normally open (NO) 1
B10D– Value Normally-closed contact/Normally open contact (NC/NO) 25,000,000 Operations
Active area lateral
Actuating element Magnet
Note (Repeat accuracy R) NOTE_DIM_DIST_REPEAT_ACCURACYFMAW00000002
Direction of motion Head-on to the active surface
Assured switching distance “ON” Sao 5 mm-8 mm
Assured switching distance “OFF” Sar 15 mm-18 mm
Termination Connector M8
Length of sensor 13 mm
Width of sensor 88 mm
Height of sensor 25 mm
Degree of protection IP67
Ambient temperature, minimum -25 °C
Ambient temperature, maximum +70 °C
Storage and transport temperature, minimum -25 °C
Storage and transport temperature, maximum +70 °C
Resistance to vibrations 10 … 55 Hz, amplitude 1 mm
Restistance to shock 30 g / 11 ms
Switching voltage, maximum 60 VDC
Switching current, maximum 0.4 A
Switching capacity, maximum 10 W
Switching frequency, maximum 5 Hz
