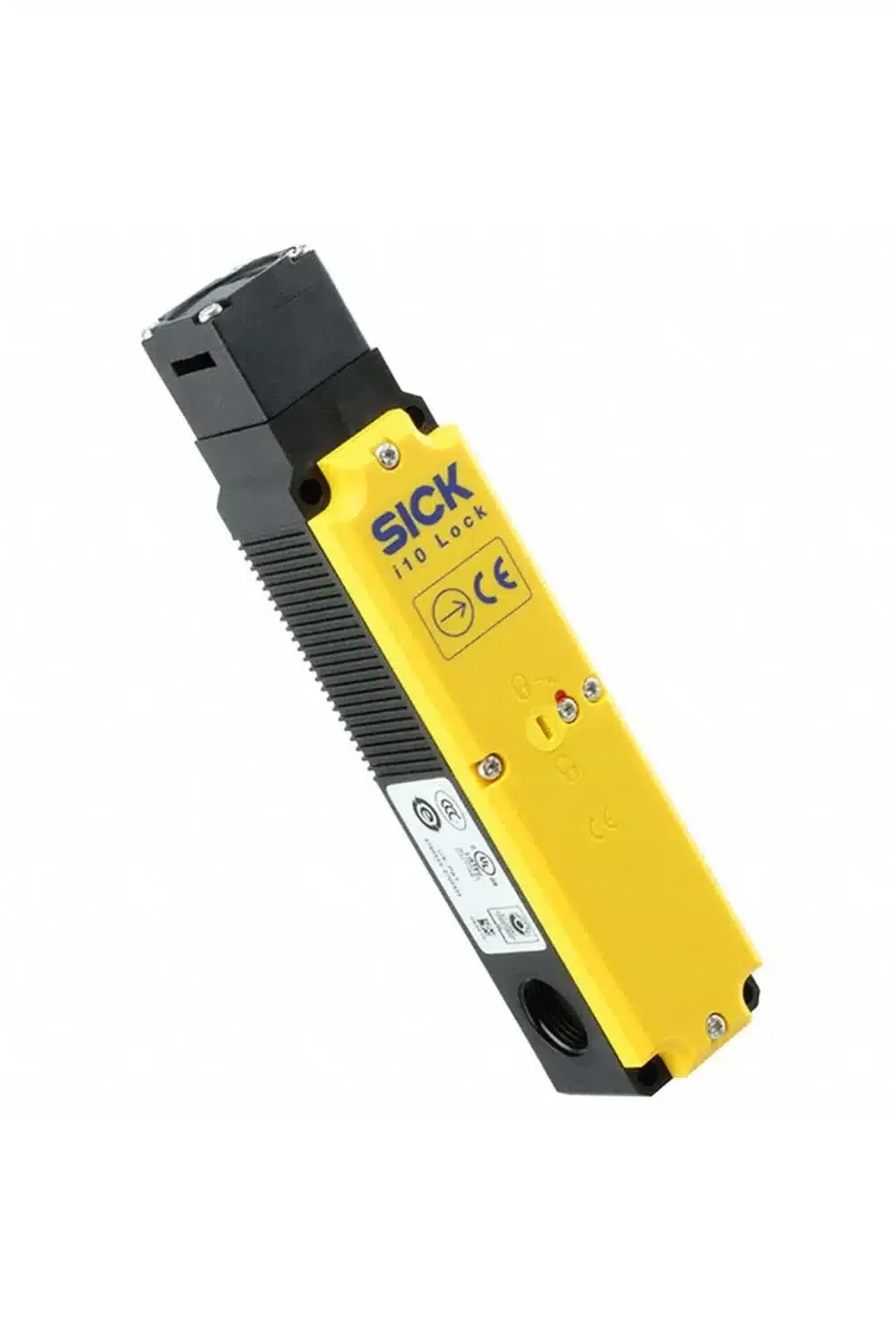

SICK I10-M0233
SICK I10-M0233 The switch has no internal fault detection and is unable to assume a safe state in the event of a fault.
| SPECIFICATIONS | |
|---|---|
| Sensor principle | Electro-mechanical |
| Locking principle | Power to release |
| Number of positive action N/C solenoid monitoring contacts | 2 |
| Number of N/O solenoid monitoring contacts | 1 |
| Number of positive action N/C door monitoring contacts | 0 |
| Number of N/O door monitoring contacts | 0 |
| Number of N/C door monitoring contacts | 1 |
| Locking force Fmax | 1,300 N (EN ISO 14119) |
| Locking force FZh | 1,000 N (EN ISO 14119) |
| Actuation force | ≥ 10 N |
| Retaining force | ≤ 20 N |
| Actuation frequency | ≤ 1,200 /h |
| Actuation directions | 4 |
| Approach speed | ≤ 20 m/min |
| Contamination rating | 3 |
| Switching principle | Slow action switching element |
| Usage category | AC-15/DC-13 (IEC 60947-5-1) |
| Rated operating current (voltage) | 4 A (230 V AC)4 A (24 V DC) |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,500 V |
| Type of output | Electro-mechanical contacts |
| Power consumption | ≤ 8 W |
| Short-circuit protection | 4 A gG |
| Switching voltage | ≥ 12 V DC |
| Switching current (switching voltage) | ≥ 1 mA (24 V DC) |
| Solenoid operating voltage | (20.4 V DC … 26.4 V DC) |
| Switch-on time of magnet | 100 % |
| Locking principle | Power to release |
