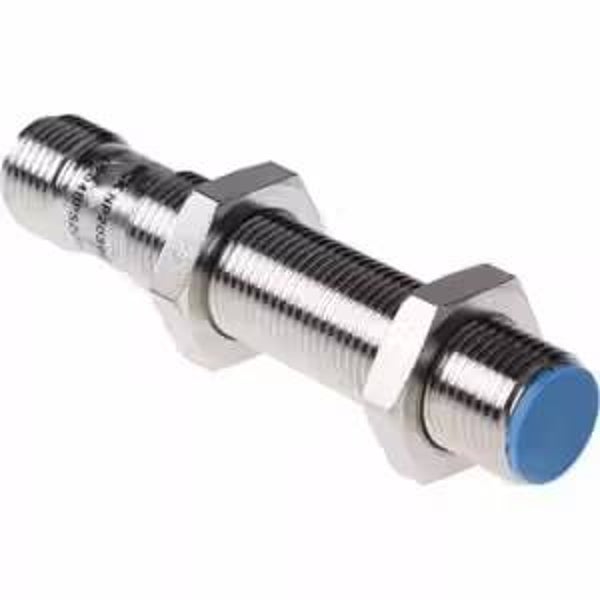

SICK IME12-04BPSZC0S
SICK IME12-04BPSZC0S Cylindrical screwable body structure
Fixing nut, brass (yellow), nickel plated (2 x)
| SPECIFICATIONS | |
|---|---|
| body structure | Cylindrical screwable body structure |
| Body design | Standard |
| Thread size | M12 x 1 |
| Ø 12 mm | |
| Detection distance S n | 4 mm |
| Secured sensing range S a | 3,24 mm |
| Metal assembly | flat head |
| Switching frequency | 2.000 Hz |
| Connection type | Socket M12, 4-pin |
| Switching output | PNP |
| Output function | normally open |
| electrical wiring | DC 3 telli |
| Protection class | IP67 1) |
| Scope of Delivery | Fixing nut, brass (yellow), nickel plated (2 x) |
| Supply voltage | 10 V DC … 30 V DC |
| Signal transport | ≤ 10 % |
| voltage drop | ≤ 2 V 1) |
| time delay | ≤ 100 ms |
| hysteresis | 5 % … 15 % |
| Repeatability | ≤ 2 % 2) 3) |
| Temperature deviation (initial S r value) | ± 10 % |
| IN YOU | In accordance with EN 60947-5-2 |
| Continuous current I a | ≤ 200 mA |
| Medicine. no-load current | ≤ 10 mA |
| Short circuit protection | ✔ |
| Reverse polarization protection | ✔ |
| Power-up pulse suppression | ✔ |
| Shock and vibration resistance | 30 g, 11 ms/10 Hz … 55 Hz, 1 mm |
| Working environment temperature | –25 °C … +75 °C |
| Body material | Brass(Yellow), nickel plated |
| Material, sensing surface | Plastic, PA 66 |
| body length | 65 mm |
| Useful thread length | 48 mm |
| Max. tightening torque | ≤ 12 Nm |
