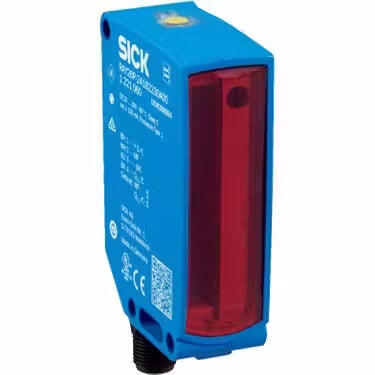

SICK RAY26P-24162330A00
SICK RAY26P-24162330A00 Signal duration under ohm load in switching mode. Values may be different in COM2 mode.
| SPECIFICATIONS | |
|---|---|
| Device type | photo seller |
| Sensor/ Detection principle | Reflective sensor, Single lens sensorReflex Array |
| Dimensions (W x H x D) | 24,6 mm x 82,5 mm x 53,3 mm |
| Body shape (light output) | rectangular form |
| Minimum object size | 3 mm, ground-independent detection within the light band (factory setting), including adjustable conveyor belt prevention, adjustable via IO-Link5 mm, ground-independent detection in the light band, including adjustable conveyor belt avoidance Adjustable via IO-Link10 mm, ground-independent detection in the light band, including adjustable conveyor belt avoidance Adjustable via IO-Link |
| inspection height | 55 mm |
| Maximum detection distance | 0 m … 2 m 1) 2)0 m … 3 m 1) 3)0 m … 4,5 m 1) 4) |
| Distance of reflector to sensor | ≥ 0 m |
| Conveyor belt prevention | Manual, via IO-Link |
| Light type | Visible red light |
| Source of light | PinPoint LED 5) |
| Light beam diameter (distance) | 55 mm x 9 mm (1 m) |
| wave length | 635 nm |
| Adjustment | BluePilot: TeachIO-Link |
| Pin-2 configuration | External input (test), teach, switching signal |
| AutoAdapt | ✔ |
| Special applications | Detects position-tolerant objects, Detection of perforated objects, Detection of rough, shiny objects, Detection of transparent objects, Detection of flat objects |
| Supply voltage | 10 V DC … 30 V DC 1) |
| Signal transport | < 5 Vss |
| Current consumption | 25 mA 2)40 mA 3) |
| Switching output | Push-pull: PNP/NPN |
| Q L1 /C output | Switching output or IO-Link mode |
| Switching function | Factory setting: Pin 2/white (MF): NPN normally closed (light switching), PNP normally open (dark switching), Pin 4 / black (QL1 / C): NPN normally open (dark switching), PNP normally off (bright switching), IO-Link |
| Switching type | Switching with light/dark |
| Switching type can be selected | via IO-Link |
| Signal voltage PNP HIGH/LOW | Yakl. UV – 2,5 V / 0 V |
| NPN HIGH/LOW gerilimi signal | Yakl. Uv / < 2,5 V |
| Output current I max. | ≤ 100 mA |
| Reaction time | ≤ 3 ms 4) |
| Switching frequency | 170 Hz 5) |
| Connection type | Socket M12, 4-pin |
| Protection circuits | A 6)B 7)C 8)D 9) |
| Protection class | III |
| Weight | 80 g |
| Body material | Plastic, VISTAL® |
| Material, optics | Plastic, PMMA |
| Protection class | IP66IP67 |
| Working ambient temperature | –40 °C … +60 °C 10) 11) |
| Storage ambient temperature | –40 °C … +75 °C |
