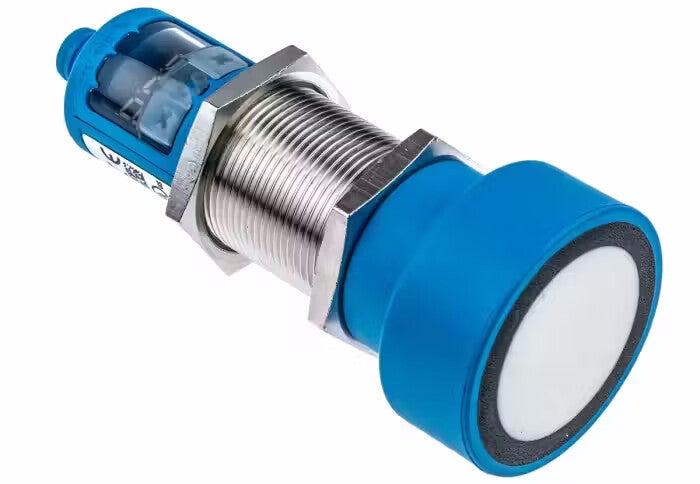

SICK UM30-214113
SICK UM30-214113 Limit values, polarity-reverse safe Operation in the network with short-circuit protection: max. 8 A, Class 2.
| SPECIFICATIONS | |
|---|---|
| Voltage source U v | DC 9 V … 30 V 1) 2) |
| Power consumption | ≤ 2,4 W 3) |
| Start time | < 300 ms |
| body shape | Cylindrical |
| Body material | Metal (Nickel plated brass (yellow), PBT)Ultrasonic sensor: polyurethane foam, epoxy resin with glass insert |
| Thread size | M30 x 1,5 |
| Connection type | Male connector, M12, 5-pin |
| Indicator | LED Screen, 2 x LEDs |
| Weight | 210 g |
| post output | Right |
| Dimensions (W x H x D) | 47,5 mm x 47,5 mm x 102 mm |
| Protection class | IP65 / IP67 |
| Protection class | III |
| Detection distance, distance limit | 350 mm … 3.400 mm, 5.000 mm |
| measured object | natural objects |
| Resolution | ≥ 0,18 mm |
| Repeatability | ± 0,15 % 1) |
| Truth | ± 1 % 2) 3) |
| temperature compensation | ✔ |
| Reaction time | 180 ms 4) |
| Output time | 43 ms |
| Ultrasonic frequency (typical) | 120 kHz |
| Sensing distance (typical) | See. diagrams |
| One function | teachable analog output, parameterizable analog output, reversible analog output, automatic switching between current and voltage output, synchronization of up to 50 sensors, multiplexing: no interaction of up to 50 sensors, adjustable measuring filters: measured value filter/filter power/pre background suppression/sensing range/sensitivity and sound beam, Display (can be disabled), Factory reset |
