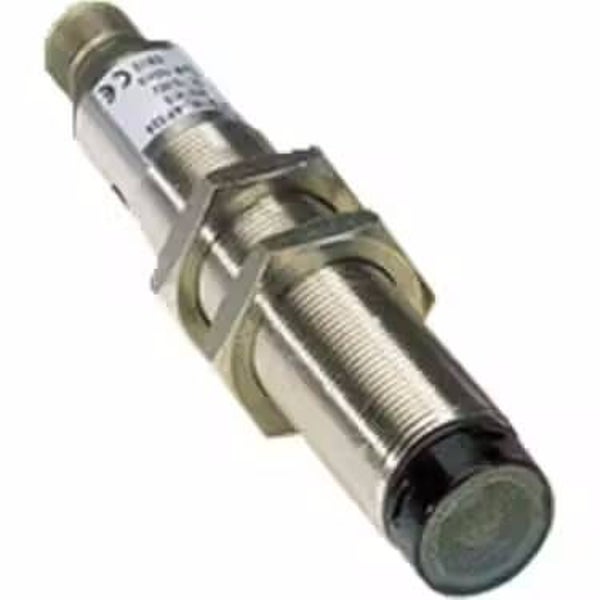

SICK VL18L-4P324
PC with protective glass made of plastic, glass material
Metal, Nickel plated brass (yellow)/PC
SPECIFICATIONS | |
---|---|
Device type | photo seller |
Sensor/ Detection principle | Reflective sensor, Dual lens |
Dimensions (W x H x D) | 18 mm x 18 mm x 97,7 mm |
Body shape (light output) | Cylindrical |
body length | 97,7 mm |
Thread diameter (Housing) | M18 x 1 |
optical axis | Right |
Maximum detection distance | 0,1 m … 35 m 1) |
Detection distance | 0,1 m … 30 m 1) |
Focus | 0,04° |
Light type | Visible red light |
Source of light | Lazer 2) |
Light beam diameter (distance) | Ø 9 mm (35 m) |
glow angle | 0,04° |
wave length | 650 nm |
laser class | 1 (IEC 60825-1) |
Laser output power | 0,4 mW |
Adjustment | Cable (Sensitivity) 3)Easy teach key (Sensitivity) 4) |
Special applications | Detects small objects |
Supply voltage | 10 V DC … 30 V DC 1) |
Signal transport | ± 10 % 2) |
Current consumption | 20 mA 3) |
Switching output | PNP |
Switching type | Switching with light/dark |
Switching type can be selected | Can be selected via control input C |
Output current I max. | ≤ 100 mA |
Reaction time | ≤ 0,625 ms 4) |
Switching frequency | 800 Hz 5) |
Connection type | Socket M12, 4-pin |
Protection circuits | A 6)B 7)C 8)D 9) |
Protection class | III |
Weight | 60 g |
Polarizing filter | ✔ |
Body material | Metal, Nickel plated brass (yellow)/PC |
Material, optics | PC with protective glass made of plastic, glass material |
Protection class | IP67 |
Working ambient temperature | –15 °C … +55 °C |
Storage ambient temperature | –25 °C … +70 °C |
