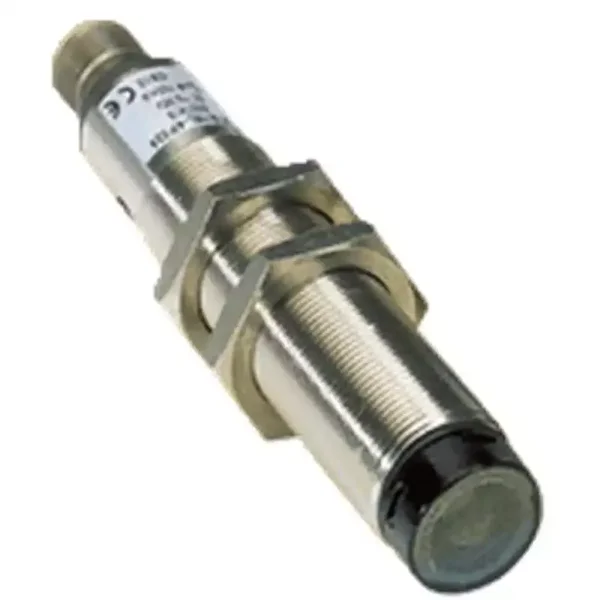

SICK VL18L-4N324
SICK VL18L-4N324 Metal, Nickel plated brass (yellow)/PC
PC with protective glass made of plastic, glass material
| SPECIFICATIONS | |
|---|---|
| Device type | photo seller |
| Sensor/ Detection principle | Reflective sensor, Dual lens |
| Dimensions (W x H x D) | 18 mm x 18 mm x 97,7 mm |
| Body shape (light output) | Cylindrical |
| body length | 97,7 mm |
| Thread diameter (Housing) | M18 x 1 |
| optical axis | Right |
| Maximum detection distance | 0,1 m … 35 m 1) |
| Detection distance | 0,1 m … 30 m 1) |
| Focus | 0,04° |
| Light type | Visible red light |
| Source of light | Lazer 2) |
| Light beam diameter (distance) | Ø 9 mm (35 m) |
| glow angle | 0,04° |
| wave length | 650 nm |
| laser class | 1 (IEC 60825-1) |
| Laser output power | 0,4 mW |
| Adjustment | Cable (Sensitivity) 3)Easy teach key (Sensitivity) 4) |
| Special applications | Detects small objects |
| Supply voltage | 10 V DC … 30 V DC 1) |
| Signal transport | ± 10 % 2) |
| Current consumption | 20 mA 3) |
| Switching output | NPN |
| Switching type | Switching with light/dark |
| Switching type can be selected | Can be selected via control input C |
| Output current I max. | ≤ 100 mA |
| Reaction time | ≤ 0,625 ms 4) |
| Switching frequency | 800 Hz 5) |
| Connection type | Socket M12, 4-pin |
| Protection circuits | A 6)B 7)C 8)D 9) |
| Protection class | III |
| Weight | 60 g |
| Polarizing filter | ✔ |
| Body material | Metal, Nickel plated brass (yellow)/PC |
| Material, optics | PC with protective glass made of plastic, glass material |
| Protection class | IP67 |
| Working ambient temperature | –15 °C … +55 °C |
| Storage ambient temperature | –25 °C … +70 °C |
