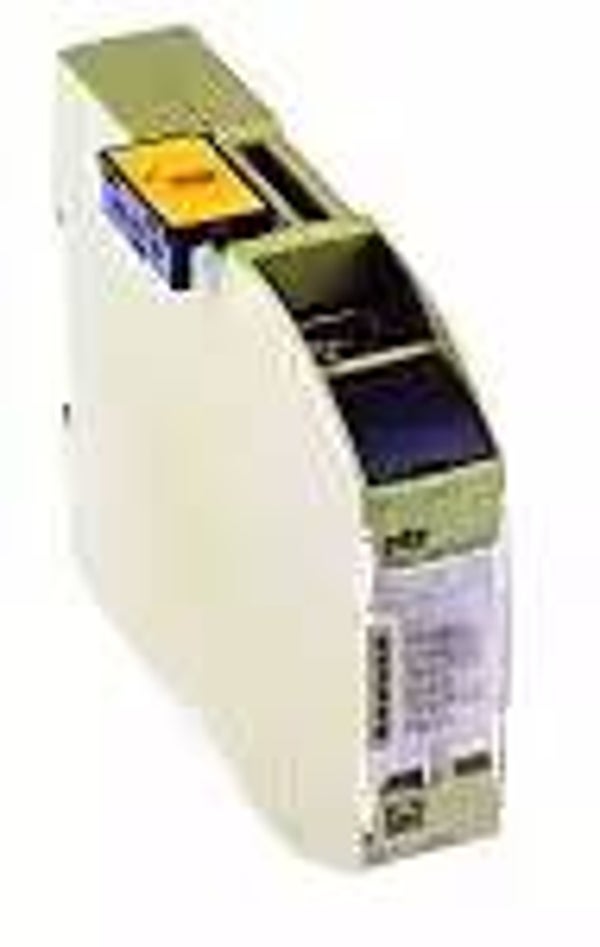

PILZ 772030
| SPECIFICATIONS | |
|---|---|
| Range | PNOZ mmc1p |
| Number of I/O | 1 |
| Number of Safety Inputs | 1 |
| Display Type | LED |
| Field Bus Communication Type | Ethernet |
| Expansion Available | Yes |
| Supply Voltage | 3.3 V dc |
| IP Rating | IP20, IP54 |
| Width | 22.5mm |
| Length | 100mm |
| Depth | 120mm |
| Dimensions | 100 x 22.5 x 120 mm |
| Purpose of UINT1: Versorgung des Moduls | |
| Source of internal voltage: über Basisgerät | |
| Voltage type of UINT1: DC | |
| Tolerance of UINT. Module: -2 %/+2 % | |
| CANopen interface | |
| Number of Ethernet interfaces: 2 | |
| Fieldbus interface | |
| Fieldbus interface: Modbus/TCP | |
| Fieldbus device type: Slave | |
| Connection fieldbus: RJ45 | |
| Galv. isolation fieldbus: ja | |
| Environmental data | |
| Ambient temperature standard: EN 60068-2-14 | |
| Ambient temperature: 0 – 60 °C | |
| Storage temperature standard: EN 60068-2-1/-2 | |
| Climatic suitability standard: EN 60068-2-30, EN 60068-2-78 | |
| Humidity rating: 93 % r. h. at 40 °C | |
| Condensation permitted?: Not permitted | |
| Perm. operating height ASL: 2000 m | |
| EMC to standard …: EN 61131-2 | |
| Vibration to standard …: EN 60068-2-6 | |
| Acc. shock to standard1: 15g | |
| Overvoltage category: II | |
| Pollution degree clear.&creep.: 2 | |
| Protection type standard: EN 60529 | |
| Protection type, mounting: IP54 | |
| Protection type, housing: IP20 | |
| Terminal protection type: IP20 |
