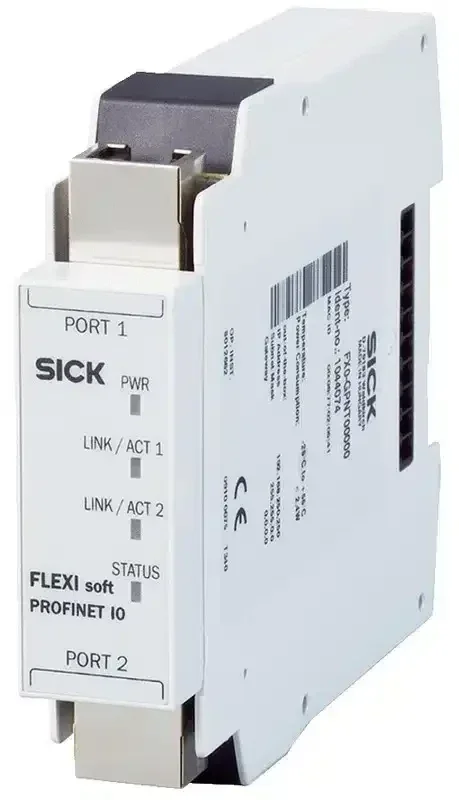

SICK FX0-GPNT00000
SICK FX0-GPNT00000 pole-layer-2-control-switch with Auto-MDI-X for automatic recognition of crossed-out Ethernet cable
| SPECIFICATIONS | |
|---|---|
| Module | Gateway |
| Fieldbus, industrial network | PROFINET |
| Configuration method | On software (Flexi Soft Designer)Safe EFI-pro System: Safety Designer |
| Fieldbus, industrial network | PROFINET |
| Integrated Ethernet Switch | 3-pole-layer-2-control-switch with Auto-MDI-X for automatic recognition of crossed-out Ethernet cable |
| Data transfer rate | 10 Mbit/s, 10Base-T100 Mbit/s, 100Base-Tautosensing |
| Connection type | 2 x female connectors, RJ-45 |
| Protection class | III (EN 61140) |
| Power source | on FLEXBUS+ |
| Internal power consumption | ≤ 2,4 W 1) |
| Dimensions (W x H x D) | 22,5 mm x 96,5 mm x 120,6 mm |
| Weight | 125 g (± 10 %) |
| Protection class | IP20 (EN 60529) |
| Working ambient temperature | –25 °C … +55 °C |
| Storage temperature | –25 °C … +70 °C |
| air humidity | 10 % … 95%, non-condensing |
| Fieldbus, industrial network | PROFINET |
| Integrated Ethernet Switch | 3-pole-layer-2-control-switch with Auto-MDI-X for automatic recognition of crossed-out Ethernet cable |
| Data transfer rate | 10 Mbit/s, 10Base-T100 Mbit/s, 100Base-Tautosensing |
| Connection type | 2 x female connectors, RJ-45 |
| Protection class | III (EN 61140) |
| Power source | on FLEXBUS+ |
| Internal power consumption | ≤ 2,4 W 1) |
