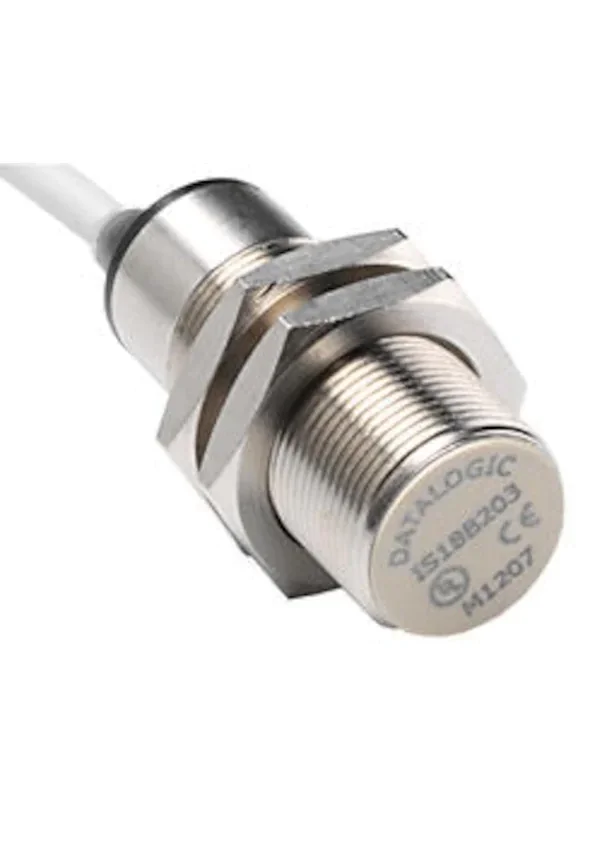

DATALOGIC IS-18-G1-03 The basic and extended line of inductive proximity sensors are made in classic cylindrical nickel-plated brass.
- 8 and 14mm sensing range
- Flush or Non-flush
- 2m embedded Cable or M12 connector
- PNP, NPN, PNP/NPN, NO, NC, NO/NC
The basic and extended line of inductive proximity sensors is made in classic cylindrical nickel-plated brass, with housing diameters ranging from 8 to 30 mm. They can detect metal objects from 1.5 mm to 20 mm apart and are available with either an embedded 2m cable or with M8 or M12 standard industrial connectors.
| TECHNICAL INFO | |
|---|---|
| Cable length | 2000 mm |
| Electrical connection | Cable 2 m |
| IP Class | IP67 |
| LED indicator | Yes |
| Material of body | Nickel-plated brass |
| Mounting | Flush mounted |
| Output | PNP, NO |
| Output current max | 0,2 A |
| Reaction time | 75 ms |
| Sensing | 8 mm |
| Sensor type | Inductive |
| Size | M18 |
| Supply voltage | 10-30 V DC |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Weight | 145 g |
PRODUCT DESCRIPTION
The basic and extended line of inductive proximity sensors are made in classic cylindrical nickel-plated brass, with housing diameters ranging from 8 to 30 mm. They can detect metal objects from 1.5 mm to 20 mm apart and are available with either an embedded 2m cable or with M8 or M12 standard industrial connectors.
Features & benefits:
• Nickel-plated Brass housing
• Short housing
• Double operating distance: 8 and 14mm
• 2m embedded cable or M12 connector
• 4 wire connection
• Outputs: PNP, NPN, PNP/NPN, NO, NC, NO/NC
• IP67 protection
Applications:
• Automatic machines
• Packaging lines
• Transportation lines
• Automatic warehouses
• Automotive
