IFM EVC006 (ADOAH040MSS0010H04)
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability.
| Application | |
|---|---|
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability |
| Free from silicone | yes |
| Electrical data | |
|---|---|
| Operating voltage [V] | < 250 AC / < 300 DC |
| Protection class | II |
| Max. current load total [A] | 4 |
| Operating conditions | |
|---|---|
| Ambient temperature [°C] | -25…90 |
| Note on ambient temperature | cULus: …75 |
| Ambient temperature (moving) [°C] | -25…90 |
| Note on ambient temperature (moving) | cULus: …75 |
| Storage temperature [°C] | -25…55 |
| Storage humidity [%] | 10…100 |
| Other climatic conditions for storage according to stated class | 1K22/ DIN 60721-3-1 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Mechanical data | ||
|---|---|---|
| Weight [g] | 340.7 | |
| Dimensions [mm] | 26.5 x 15.5 x 36.5 | |
| Moulded-body material | TPU | |
| Material nut | brass, nickel-plated | |
| Sealing material | FKM | |
| Drag chain suitability | yes | |
| bending radius for flexible use | min. 10 x cable diameter | |
| Drag chain suitability | travel speed | max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² |
| bending cycles | > 5 Mio. | |
| torsional strain | ± 180 °/m |
| Remarks | |
|---|---|
| Notes | Please see the technical note under “Downloads” |
| Pack quantity | 1 pcs. |
| Electrical connection | |
|---|---|
| Connection | Cable: 10 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
| Electrical connection – socket | |
|---|---|

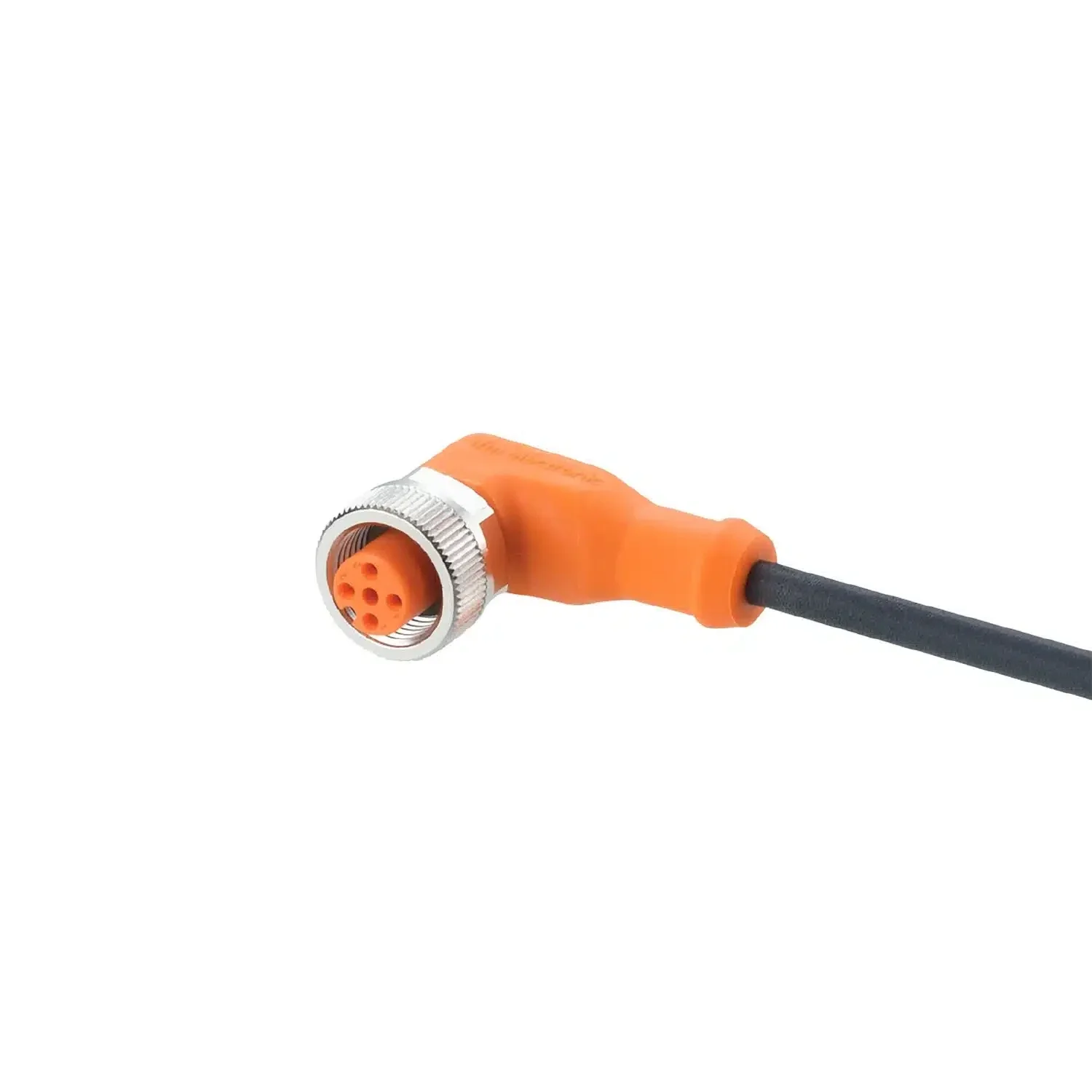

| Connection | Connector: 1 x M12, angled; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6…1.5 Nm |
