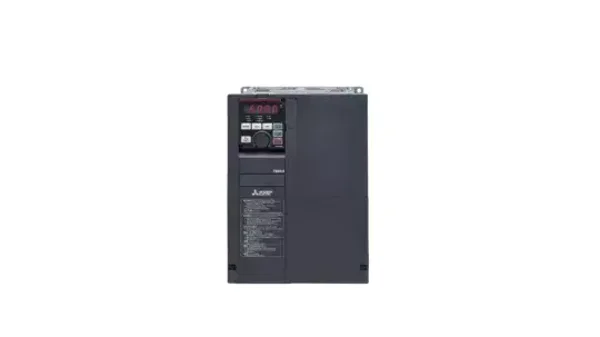

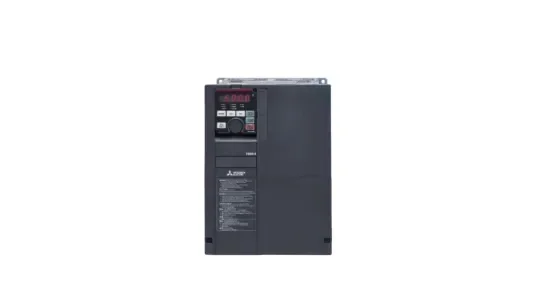

MITSUBISHI FR-F840-00380-E2-60
| SPECIFICATIONS | |
|---|---|
| Series | FR-F800 SERIES |
| Type | FR-F800-E INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current SLD (A) | 38 |
| Rated Output Current LD (A) | 35 |
| Rated Motor Capacity SLD (kW) | 18,5 |
| Rated Motor Capacity LD (kW) | 18,5 |
| Control Method | V/F CONTROL, MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, SOFT-PWM/HIGH FREQUENCY PWM |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | iQSS, SLMP, MODBUS/TCP, MELSOFT/FA, CC-LINK IE FIELD NETWORK BASIC, BACnet/IP |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Power Loss SLD (W) | 450 |
| Power Loss LD (W) | 415 |
| Frequency Range (Hz) | 0,2–590 |
| Standby Power Consumption (W) | 20 |
| Protection Class | IP20 |
