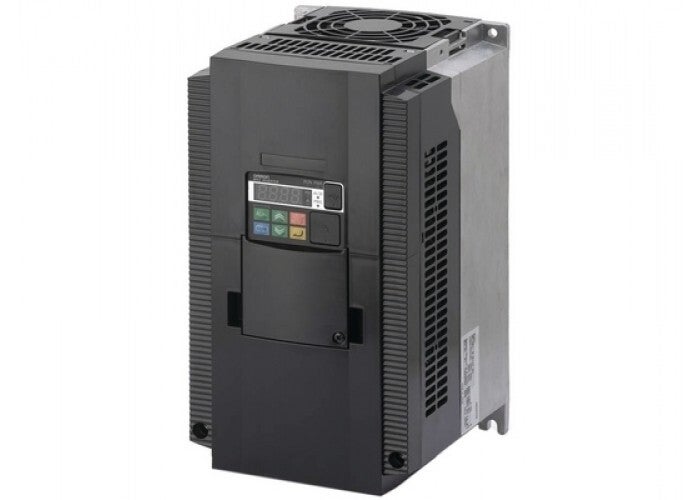

OMRON 3G3MX2-A4075-E INVERTER DRIVE
Available stocks!
7.5/11.0 kW (HD/ND), 18/23 A (HD/ND), 400 VAC, 3~, sensorless vector, max. output freq. 580Hz
| SPECIFICATIONS | |
|---|---|
| Drive control method | Open loop V/f, Open loop vector |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque (HD) | 7.5 kW |
| Max. motor output at variable torque (ND) | 11 kW |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Communication option(s) | CompoNet Slave, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, PROFIBUS DP Slave |
| Height | 260 mm |
| Width | 140 mm |
| Depth | 155 mm |
| Weight | 3500 g |
