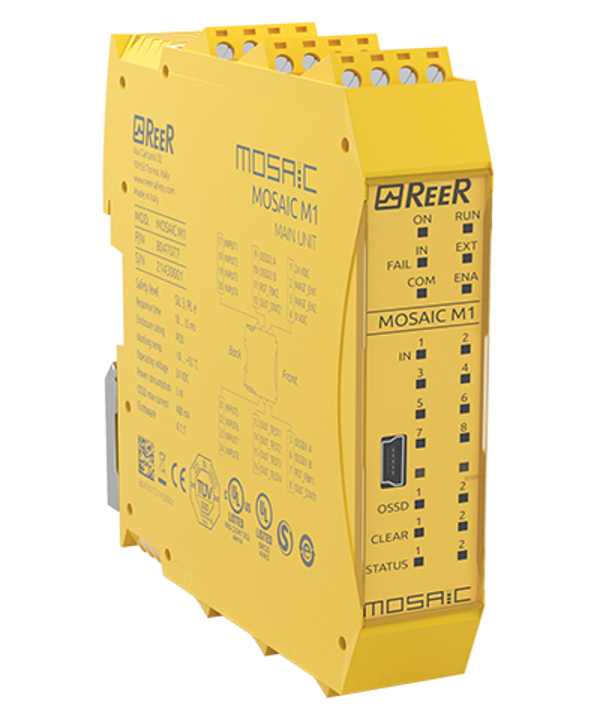

REER MOSAIC M1
Standard Master Unit. 8 Inputs. 2 OSSD pairs (SIL 3). Screw Terminal Blocks
The Master Unit for the control of any other expansion unit (not compatible with MI8O4, MO4L, and MA4), can also work as a Stand-Alone
As Master Unit: to control a more complex system protecting bigger machinery with multiple sensors.
As Stand-Alone: to control smaller machinery connecting with up to 4 safety devices, i.e. 1 safety light curtain, 1 e-stop, 1 magnetic sensor, and 1 two-hand switch
Possibility of remote connection through field-bus interfaces.
| SPECIFICATIONS | |
|---|---|
| Safety level | PL e |
| Safety inputs | 8 digital inputs |
| Safety level (SIL / PL) | SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating temperature (°C) | – 10 … 55 |
| Signalling | LEDs indication for operating status and fault diagnosis. LED indication of the: inputs, OSSD outputs, reset request and status outputs condition |
| Safety output type | 2 OSSD PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| Connections | Removable terminal blocks, screw contacts |
| MTTFD (ISO13849) years | 30 … 100 |
| PFHD (IEC 61508) | 6,86E-09 |
| Safety outputs | 2 OSSD pairs (400 mA) |
| Status outputs | 2 PNP (100 mA) |
| Test outputs | 4 |
| Storage temperature (°C) | -20 … +85 |
| MSC connector provided | No |
| Connection with MSC BUS | Yes |
| Start/Restart inputs and EDM | 2 |
| Housing for MCM | Yes |
| USB input | Yes |
| Packaging dimensions HxLxW (mm) | 36 x 127 x 113 |
| Product class | C |
| Custom tariff | 85371091 |
