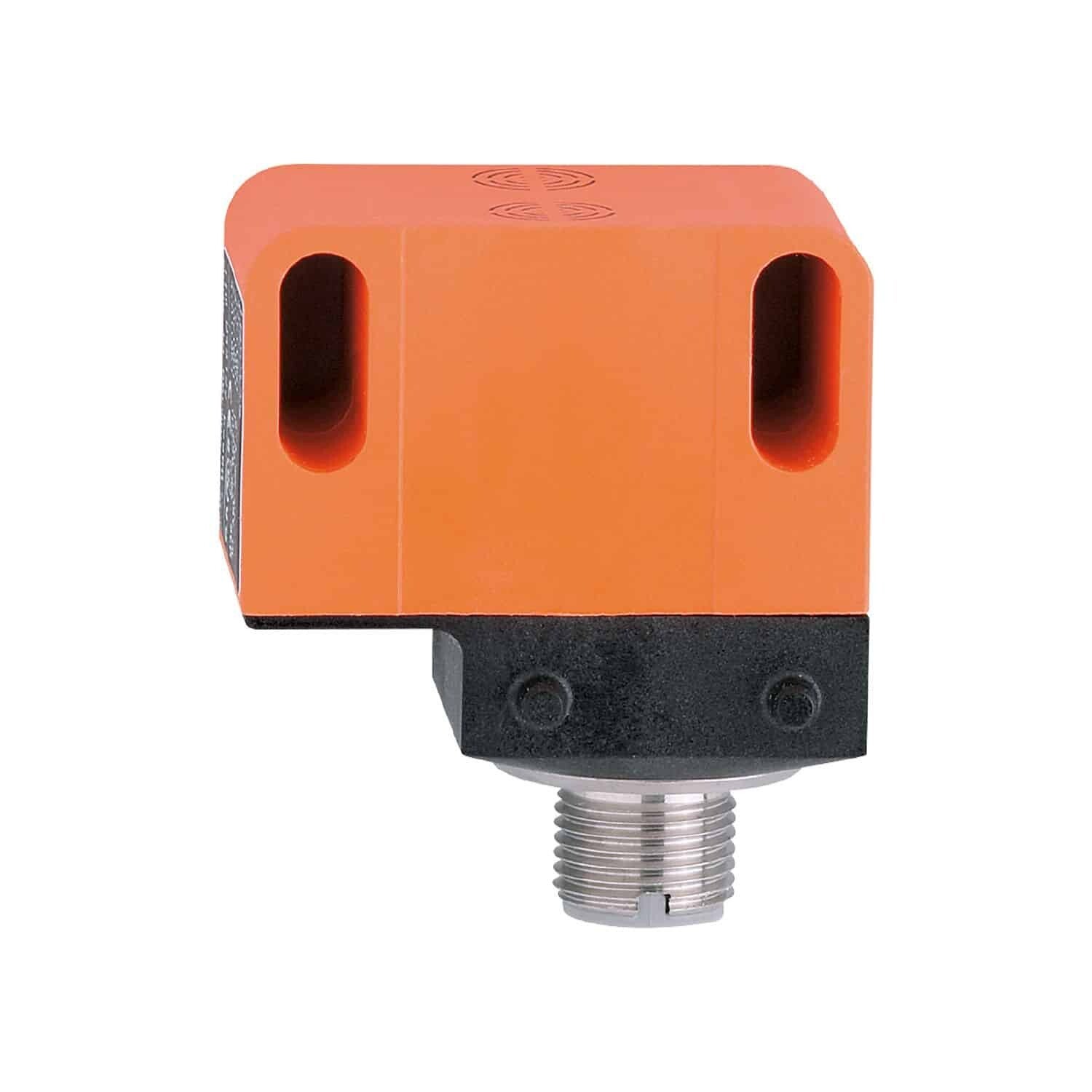

IFM IN5331 (IND2004DARKG/US-100-ZRV RT)
IFM IN5331 For reliable position feedback on valve actuators Quick and secure mounting with only three screws.
| SPECIFICATIONS | |
|---|---|
| Electrical design | PNP/NPN |
| Output function | 2 x normally open |
| Sensing range [mm] | 4 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 26 x 47 |
| Electrical data | |
| Operating voltage [V] | 10…36 DC |
| Protection class | II |
| Reverse polarity protection | yes |
| Outputs | |
| Electrical design | PNP/NPN |
| Output function | 2 x normally open |
| Max. voltage drop switching output DC [V] | 4 |
| Minimum load current [mA] | 4 |
| Max. leakage current [mA] | 2 x 0.7 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 250 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Detection zone | |
| Sensing range [mm] | 4 |
| Real sensing range Sr [mm] | 4 ± 10 % |
| Operating distance [mm] | 0…3.25 |
| Accuracy / deviations | |
| Correction factor | steel: 1 / stainless steel: 0.7 / aluminium: 0.3 / copper: 0.4 |
| Hysteresis [% of Sr] | 3…15 |
| Switch point drift [% of Sr] | -10…10 |
| Operating conditions | |
| Ambient temperature [°C] | -25…80 |
| Protection | IP 67 |
