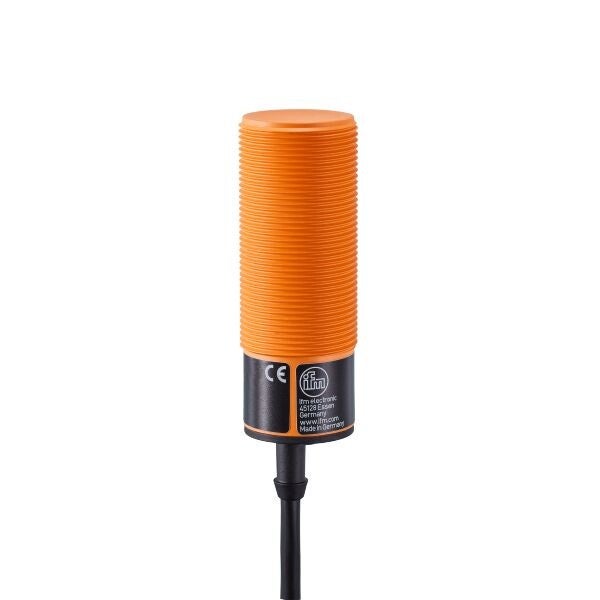

IFM KI5002 (KI-3015-BPKG/NI)
IFM KI5002 Easy setting of the sensing range via potentiometer Clearly visible indication of the switching status.
| SPECIFICATIONS | |
|---|---|
| Electrical design | PNP |
| Output function | normally open |
| Sensing range [mm] | 15 |
| Housing | threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 81 |
| Electrical data | |
| Operating voltage [V] | 10…36 DC |
| Current consumption [mA] | 13; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
| Outputs | |
| Electrical design | PNP |
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 40 |
| Short-circuit proof | yes |
| Overload protection | yes |
| Detection zone | |
| Sensing range [mm] | 15 |
| Sensing range adjustable | yes |
| Factory setting sensing range [mm] | 15 |
| Real sensing range Sr [mm] | 15 ± 10 % |
| Operating distance [mm] | 0…12.1 |
| Accuracy / deviations | |
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
| Hysteresis [% of Sr] | 1…15 |
| Switch point drift [% of Sr] | -15…15 |
| Operating conditions | |
| Ambient temperature [°C] | -25…70 |
| Protection | IP 65 |
