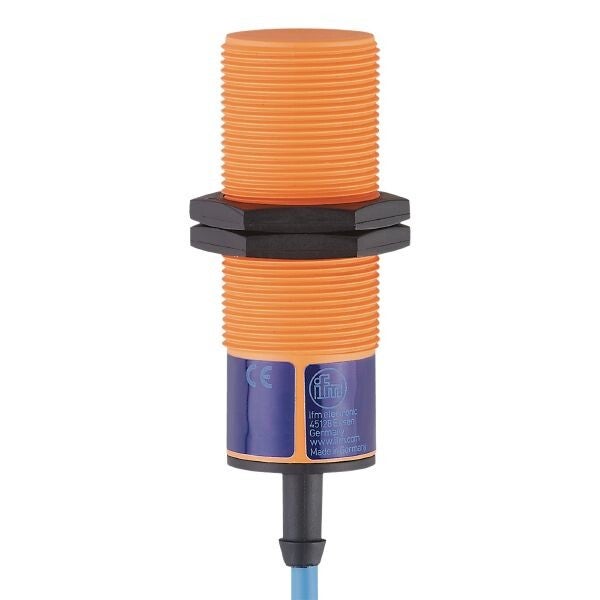

IFM KI5030 (KI-2015-N/NI/1D/1G)
IFM KI5030 For applications in hazardous areas Easy setting of the sensing range via potentiometer.
| SPECIFICATIONS | |
|---|---|
| Electrical design | NAMUR |
| Output function | normally closed |
| Sensing range [mm] | 15 |
| Housing | threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 81 |
| Electrical data | |
| Connection to switching amplifiers | yes |
| Switching amplifiers | connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW |
| Nominal voltage DC [V] | 8.2; (1kΩ) |
| Supply voltage DC [V] | 7.5…15 |
| Current consumption [mA] | < 1; (disabled; conductive: > 2,2) |
| Protection class | II |
| Measuring principle | capacitive |
| Outputs | |
| Electrical design | NAMUR |
| Output function | normally closed |
| Switching frequency DC [Hz] | 40 |
| Short-circuit proof | yes |
| Detection zone | |
| Sensing range [mm] | 15 |
| Sensing range adjustable | yes |
| Factory setting sensing range [mm] | 15 |
| Real sensing range Sr [mm] | 15 ± 10 % |
| Accuracy / deviations | |
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
| Hysteresis [% of Sr] | 1…15 |
| Switch point drift [% of Sr] | -15…15 |
| Operating conditions | |
| Ambient temperature [°C] | -20…60 |
| Protection | IP 65 |
