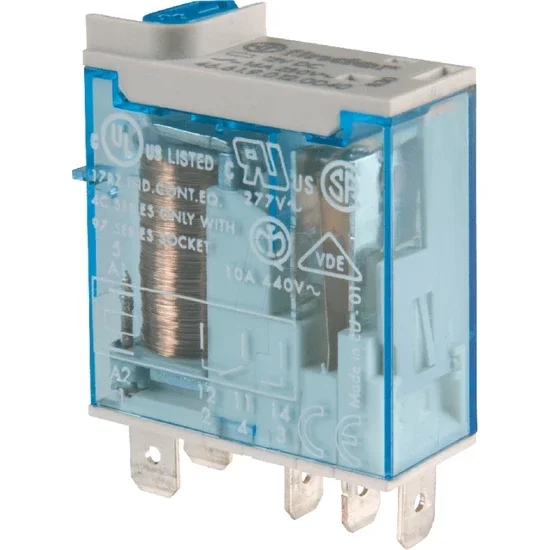

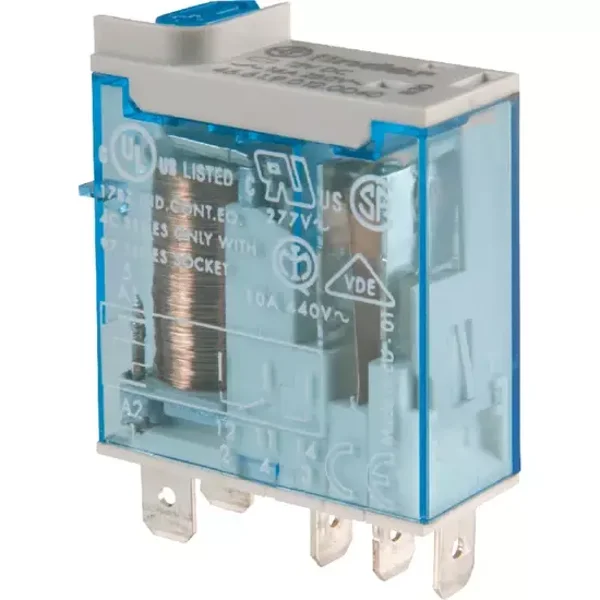

FINDER 46-61-8-230-0040
Gross weight18.18 g
Pre pack information Cardboard = 10 pcsCardboard = 500 pcs
| SPECIFICATIONS | ||
|---|---|---|
| Manufacturer | FINDER | |
| Type of relay | electromagnetic | |
| Contacts configuration | SPDT | |
| Rated coil voltage | 230V AC | |
| Contact current max. | 25A | |
| AC contacts rating @R(at resistive load) | 16A / 250V AC | |
| DC contacts rating @R(at resistive load) | 16A / 30V DC | |
| Switched voltage | max. 220V DC, max. 440V AC | |
| Relay variant | industrial, miniature | |
| Mounting | socket | |
| Coil voltage min. | 184V AC | |
| Coil voltage max. | 253V AC | |
| Relay series | 46.61 | |
| Operating temperature | -40…70°C | |
| Body dimensions | 29×12.4×32.8mm | |
| Coil resistance | 28kΩ | |
| Mechanical durability | 1000000 cycles | |
| Contact material | AgNi | |
| Coil power consumption | 1.2VA | |
| Terminal pitch | 5.2mm | |
| Design | test button |
