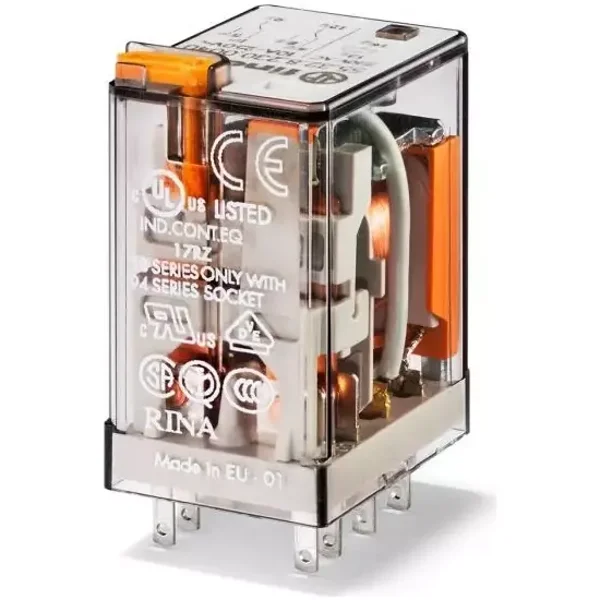

FINDER 55-34-9-024-0040
The Finder 55 series are industrial relays used for general-purpose applications. These electromechanical relays are available in 2, 3 & 4 poles with PCB or plug-in mounting.
- AC and DC coils are available based on the order.
- Available with lockable test button, mechanical flag & LED indicator
- Available in flux-proof RT II standard and wash-tight RT III version
- Cadmium free contacts
- DPDT, 3PDT, 4PDT contact configurations
- Switching capacity of 10A, 7A at 250VAC
- UL, CSA, and VDE standards approved
- Gross weight: 34.55 g
- Prepack information Cardboard = 10 pcsBag = 50 pcs
| SPECIFICATIONS | |
|---|---|
| Manufacturer | FINDER |
| Type of relay | electromagnetic |
| Contacts configuration | 4PDT |
| Rated coil voltage | 24V DC |
| Contact current max. | 15A |
| AC contacts rating @R(at resistive load) | 7A / 250V AC |
| DC contacts rating @R(at resistive load) | 7A / 30V DC |
| Switched voltage | max. 220V DC, max. 250V AC |
| Relay variant | industrial |
| Mounting | socket |
| Relay series | 55.34 |
| Operating temperature | -40…85°C |
| Body dimensions | 27.7×20.7×35.8mm |
| Coil resistance | 600Ω |
| Coil current | 40mA |
| Contact material | AgNi |
| Coil power consumption | 1W |
| Leads | 2,8×0,5mm connectors |
| Related items | 94.14, 94.04 |
