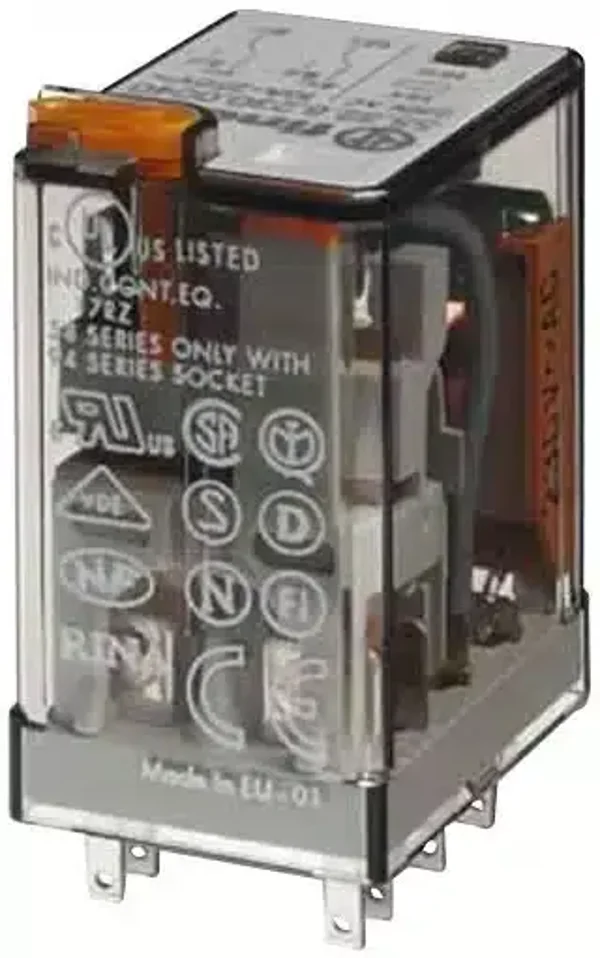

FINDER 55-32-9-024-0040
The 55.32.9.024.0040 is a Plug-in mount General-purpose Relay with a DC coil. This 55 series relay has 2CO (DPDT) cadmium-free standard AgNi contacts and lockable test buttons with mechanical indicators. Suitable for 94-series sockets and comes with a European patent.
- Coil EMC suppression
- Dust-proof RT I standard protection rating
| SPECIFICATIONS | ||
|---|---|---|
| Manufacturer | FINDER | |
| Type of relay | electromagnetic | |
| Contacts configuration | DPDT | |
| Rated coil voltage | 24V DC | |
| Contact current max. | 20A | |
| AC contacts rating @R(at resistive load) | 10A / 250V AC | |
| DC contacts rating @R(at resistive load) | 10A / 30V DC | |
| Switched voltage | max. 220V DC, max. 400V AC | |
| Relay variant | industrial | |
| Mounting | socket | |
| Relay series | 55.32 | |
| Operating temperature | -40…85°C | |
| Body dimensions | 27.7×20.7×35.8mm | |
| Coil resistance | 600Ω | |
| Coil current | 40mA | |
| Contact material | AgNi | |
| Coil power consumption | 1W | |
| Leads | 2,8×0,5mm connectors |
