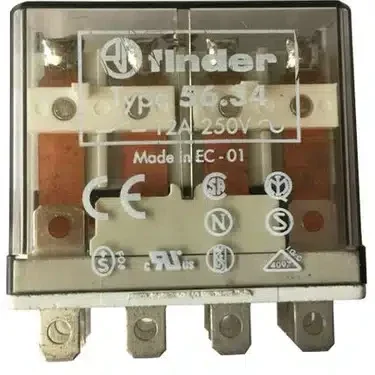

FINDER 56349012004000

CONTACT SPECIFICATION

Contact configuration 2 CO (DPDT) 4 CO (4PDT) 2NO (DPST-NO) – ≥ 1.5 mm gap
Rated current/Maximum peak current A 12/20 12/20
Rated voltage/
Maximum switching voltage V AC 250/400 250/400
Rated load AC1 VA 3000 3000
Rated load AC15 (230 V AC) VA 700 700
Single phase motor rating (230 V AC) kW 0.55 0.55
Breaking capacity DC1: 30/110/220 V A 12/0.5/0.25 12/1/0.5
Minimum switching load mW (V/mA) 500 (10/5) 500 (10/5)
Standard contact material AgNi AgNi

COIL SPECIFICATION

Nominal voltage (UN) V AC (50/60 Hz) 6 – 12 – 24 – 48 – 60 – 110 – 120 – 230 – 240 – 400*
V DC 6 – 12 – 24 – 48 – 60 – 110 – 125 – 220 —
Rated power AC/DC VA (50 Hz)/W 1.5/1 2/1.3 1.5/—
Operating range AC (0.8…1.1)UN (0.85…1.1)UN
DC (0.8…1.1)UN (0.8…1.1)UN —
Holding voltage AC/DC 0.8 UN / 0.6 UN 0.85 UN/—
Must drop-out voltage AC/DC 0.2 UN / 0.1 UN 0.2 UN/—
Technical data
Mechanical life AC/DC cycles 20 · 106/50 · 106 20 · 106/—
Electrical life at rated load AC1 cycles 100 · 103 100 · 103
Operate/release time ms 9/6 11/11 8/4
Insulation between coil
and contacts (1.2/50 μs) kV 4 5 4
Dielectric strength
between open contacts V AC 1000 2000
