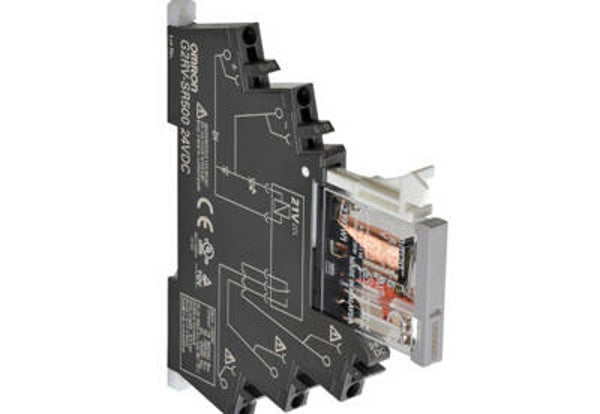

OMRON G2RV-SR500 24VDC
OMRON G2RV-SR500 24VDC Interface; SPDT; Ucoil: 24VDC; 6A; 6A/250VAC; 6A/30VDC; DIN
| SPECIFICATIONS | |
|---|---|
| Manufacturer | OMRON |
| Type of relay | interface |
| Contacts configuration | SPDT |
| Rated coil voltage | 24V DC |
| Max. operating current | 6A |
| AC contacts rating @R(at resistive load) | 6A / 250V AC |
| DC contacts rating @R(at resistive load) | 6A / 30V DC |
| Mounting | DIN |
| Leads | spring clamps |
| Relay variant | Relay set |
| Switched voltage | max. 125V DC, max. 440V AC |
| Operate time | 20ms |
| Release time | 40ms |
| Relay series | G2RV-SR |
| Operating temperature | -40…55°C |
| Contact material | silver alloy |
| Body dimensions | 88.8×6.2x78mm |
| Contact resistance | 100mΩ |
| Mechanical durability | 5000000 cycles |
| Electrical life | 50000 cycles |
