ALLEN BRADLEY 1734-IB4

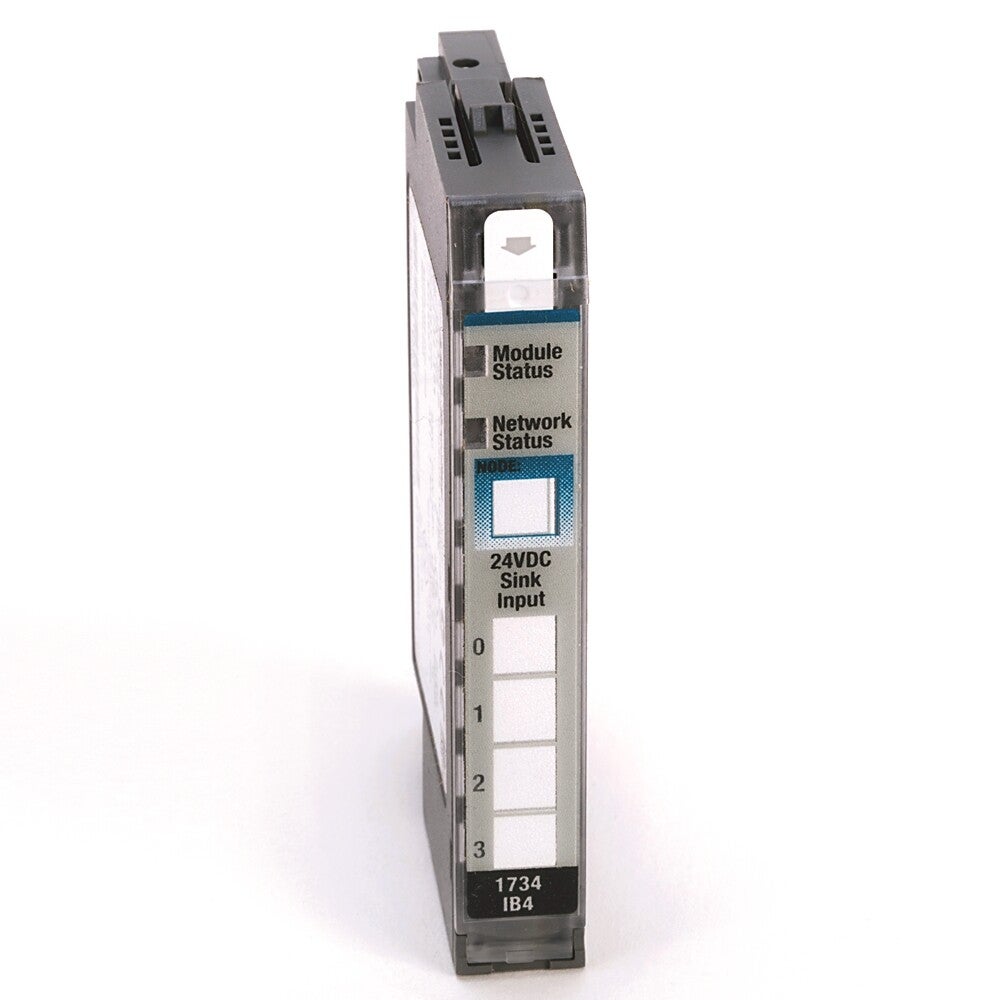

The Allen-Bradley 1734-IB4 POINT I/O is a DIN rail mountable Four (4) input channel module. Use zinc plate, yellow chromate steel DIN rail when mounting this module.
Materials like aluminium or plastic may corrode or oxidise and poor conductors that may cause improper or intermittent grounding. Attach the DIN rail safely onto the installed surface approximately every 200 mm (7.8 inches) and use the anchors appropriately. All cables are made to the removable Terminal Block (RTB) installed at the bottom of the installation.
| SPECIFICATIONS | |
|---|---|
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1734-IB4 |
| Series | POINT I/O |
| Module Type | Digital DC Sinking Input Module |
| Inputs | 4 |
| Input Voltage | 24 Volts DC |
| Input Current Maximum | 5 milliamps |
| POINTBus Current | 75 milliamps |
| Power Dissipation | 3.4 BTU/hour |
| Input Filter Time | 0.5 ms hardware plus 0…63 ms (user-selectable) |
| Dimensions | 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.) |
| Weight, approx. | 31.8 g (1.12 oz |
| Enclosure type rating | None (open-style) |
| Keyswitch position | 1 |
