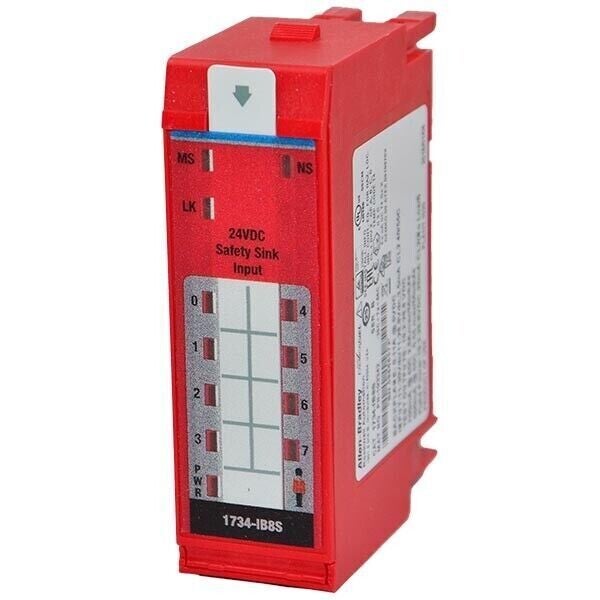

ALLEN BRADLEY 1734-IB8S
This module is a POINT Guard IO Safety module with Eight (8) Current Sinking Input Channel and Four (4) pulse Current Sourcing Pulse Test Outputs.
| SPECIFICATIONS | |
|---|---|
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1734-IB8S |
| Series | POINT I/O |
| Module Type | Guard I/O Safety Module |
| Input Type | Current Sinking |
| Enclosure Type | Open |
| Number of Inputs | Eight (8) Inputs |
| No. of Pulse Test Outputs | Four (4) Pulse Test Outputs |
| Operating Supply Voltage | 24 Volts DC (nom) |
| Available Series | A and B |
| Weight | 2.2 ounces |
| Dimensions | 3.03 x 0.98 x 2.17 (inches) |
| Power Dissipation | 3.4 Watts |
| UPC | 10612598350619 |
| Terminal Bases | 1734-TOP or 1734-TB |
| Key Switch Position | Key 1 (left) Position 8, Key 2 (Right) Position 1 |
| Temperature vs Current Derating | 2.8A at 20 Celsius |
