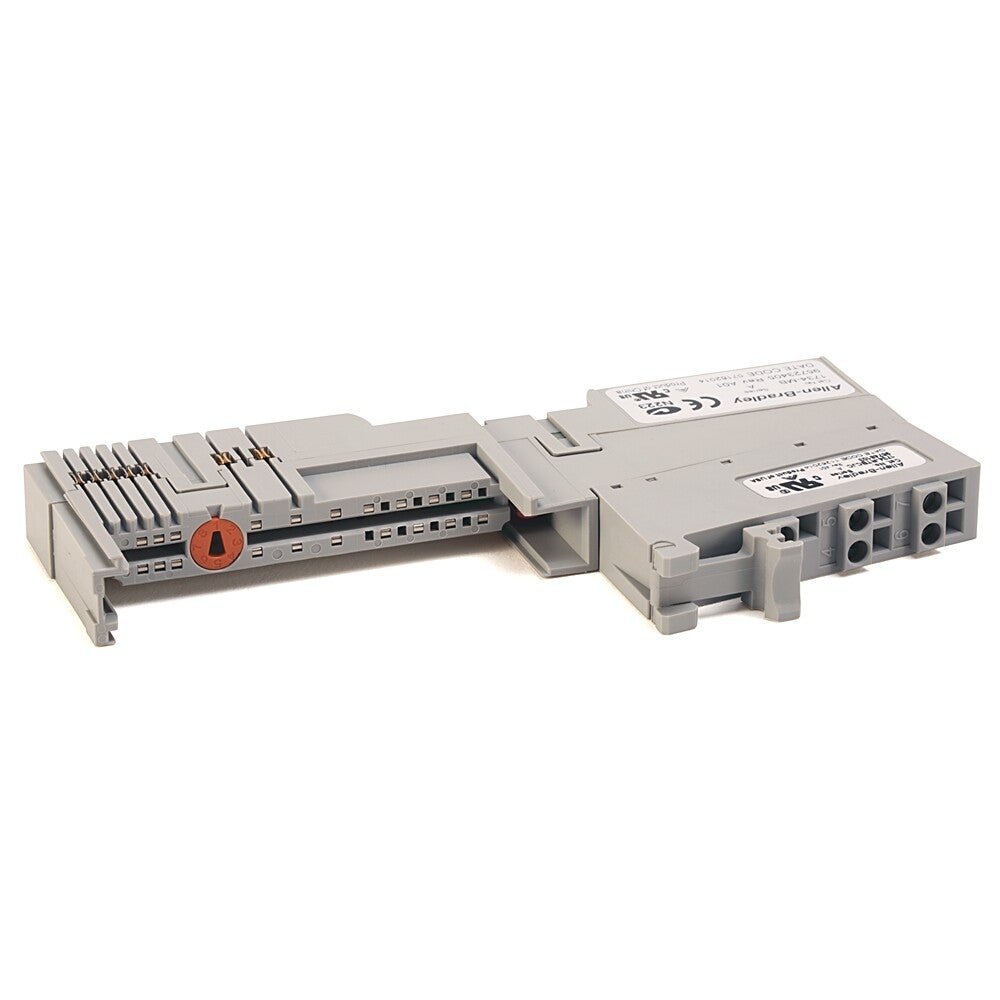

ALLEN BRADLEY 1734-TBCJC
The 1734-TBCJC is a Cold Junction Compensation wiring base assembly that is part of Allen-Bradley’s POINT I/O system. This module has a supply voltage of 28.8 VDC, 120 VAC / 240 VAC with a maximum supply current of 10 A. This assembly is used with the 1734-IT2I POINT I/O Thermocouple module and 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS terminal base.
| SPECIFICATIONS | |
|---|---|
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1734-IA4 |
| Manufacturer | Rockwell Automation |
| Series | POINT I/O |
| Brand | Allen-Bradley |
| Module Type | Terminal Base |
| Series | POINT I/O |
| Module Type | Cold Junction Compensation wiring base assembly |
| Description | Cold-Juctiontion Compensation RTB |
| Supply voltage | 28.8V DC, 120/240V AC |
| Supply current | 10 A maximum |
| Dimensions, approx., HxWxD | 65 x 12 x 133.4 mm (2.56 x 0.472 x 5.25 in.) |
| Wire size | 0.25…2.5 mm2 (24…14 AWG) thermocouple wire; 1.2 mm (3/64 in.) insulation maximum |
| Operating temperature | -20…+55 °C (-4…+131 °F) |
| Non-operating temperature | -40…+85 °C (-40…+185 °F) |
| Relative humidity | 5-95%, non-condensing |
| Vibration rating | 5 g @ 10…500Hz |
| Shock, operating | 30 g |
| Shock, nonoperating | 50 g |
