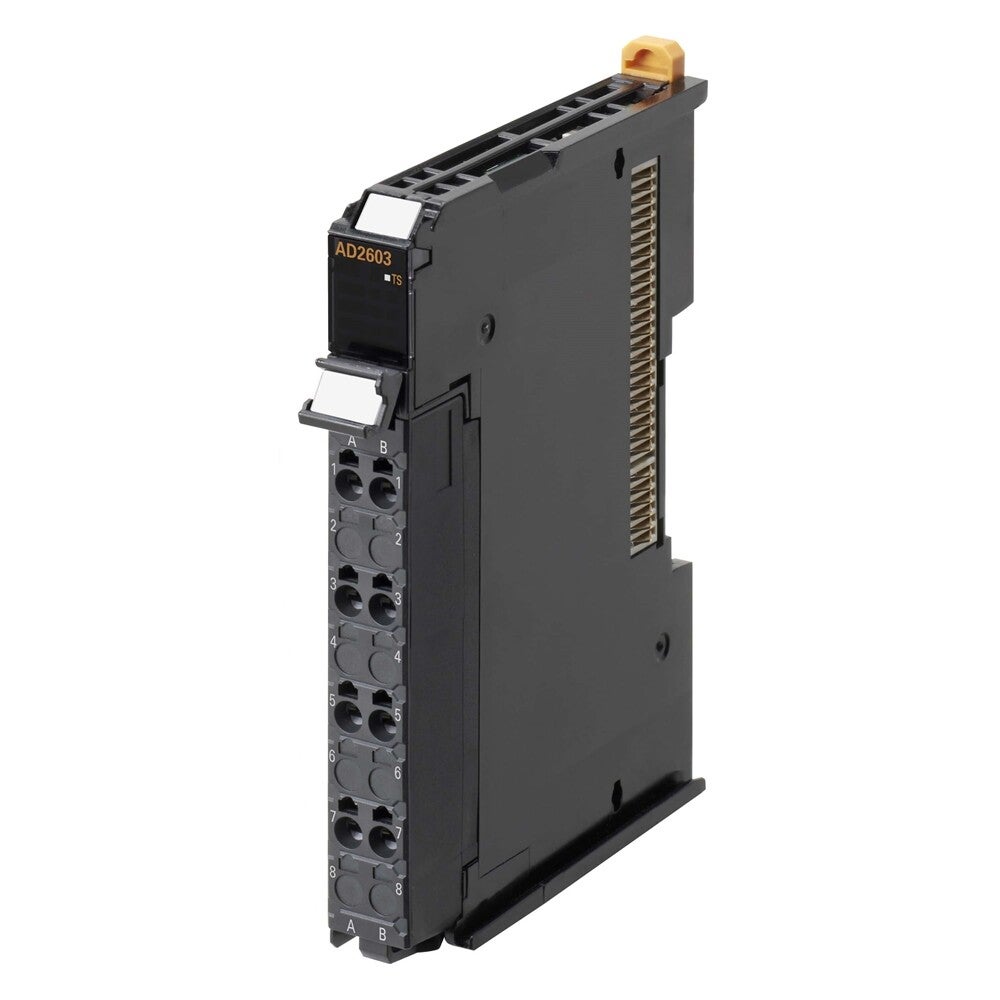

OMRON NX-AD2603 2 Analog Inputs, -10 to 10 V single-ended, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide.

I/O system NX I/O Bus
Type of module Analog I/O
Number of analog inputs 2
Temperature input type None
Linear analog input type -10 to 10 V
Resolution of the analog inputs 13 Bit
Input circuit type Single-ended
Number of analog outputs 0
Linear analog output type None
Conversion time 0.5 ms/unit
Signal processing Free running
IO link master
I/O connection type Push-in
Number of I/O connectors 1
Detachable I/O connector
Suitable for safety functions
SIL according to IEC 61508 None
Degree of protection (IP) IP20
Height 100 mm
Width 12 mm
Depth 71 mm
Weight 70 g
