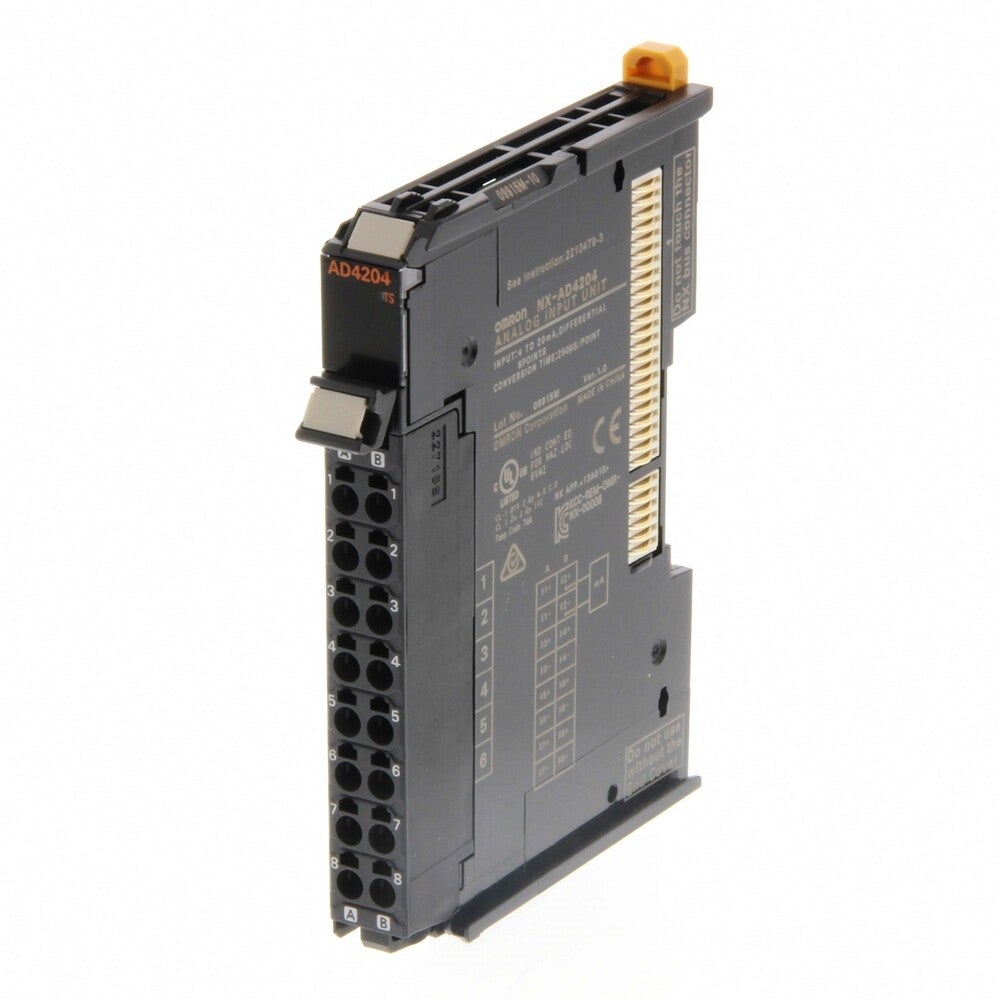

OMRON NX-AD4204
OMRON NX-AD4204 8 Analog Inputs, 4 to 20 mA differential, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide.
| SPECIFICATIONS | |
|---|---|
| I/O system | NX I/O Bus |
| Type of module | Analog I/O |
| Number of analog inputs | 8 |
| Temperature input type | None |
| Linear analog input type | 4 to 20 mA |
| Resolution of the analog inputs | 13 Bit |
| Input circuit type | Differential |
| Number of analog outputs | 0 |
| Linear analog output type | None |
| Conversion time | 2 ms/unit |
| Signal processing | Free running |
| IO link master | |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| SIL according to IEC 61508 | None |
| Degree of protection (IP) | IP20 |
| Height | 100 mm |
| Width | 12 mm |
| Depth | 71 mm |
| Weight | 70 g |
