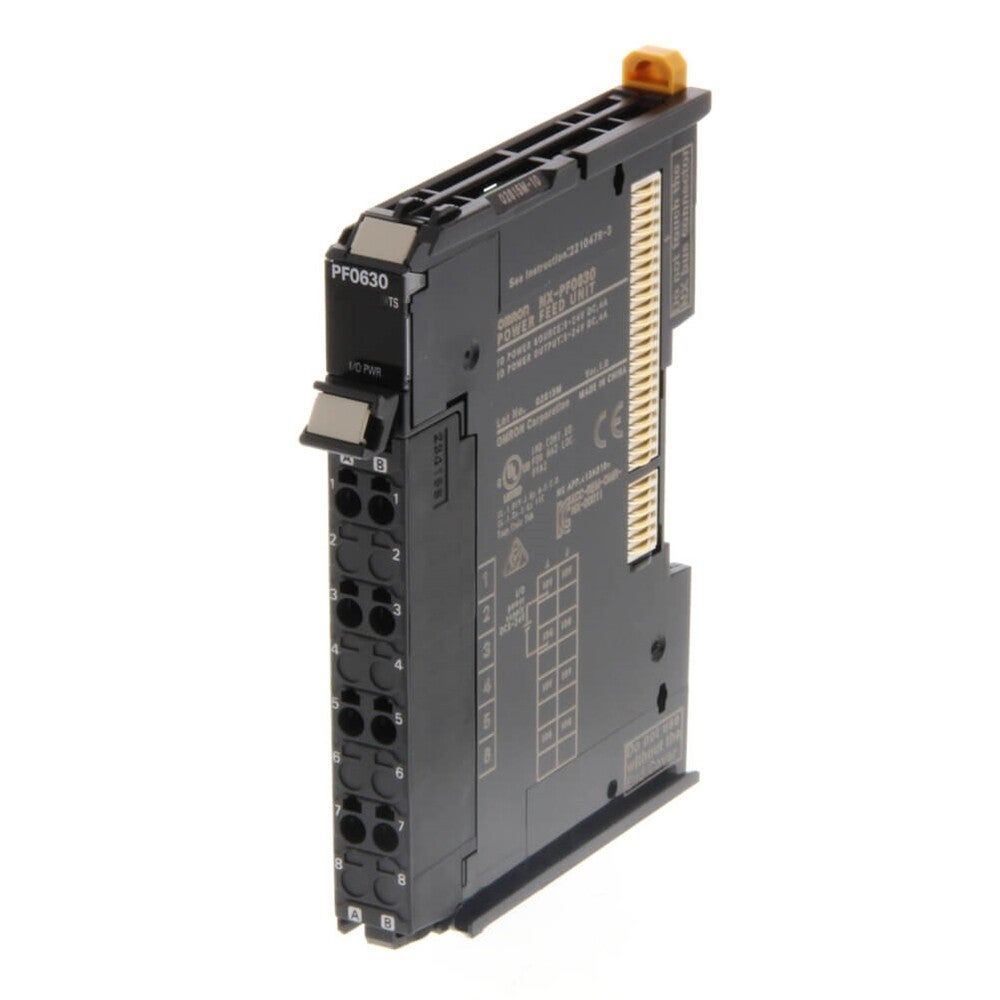

OMRON NX-PF0630
OMRON NX-PF0630 NX I/O power feed unit, 5-24 V DC input, 8 terminals, 4A, screwless push-in connector, 12mm wide.
| SPECIFICATIONS | |
|---|---|
| I/O system | NX I/O Bus |
| Type of module | Power feed |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | + |
| Suitable for safety functions | NA |
| SIL according to IEC 61508 | None |
| Number of IOV (V+) terminals | 4 |
| Number of IOG (V-) terminals | 4 |
| Number of FG terminals | 0 |
| Degree of protection (IP) | IP20 |
| Height | 100 mm |
| Width | 12 mm |
| Depth | 71 mm |
| Weight | 65 g |
