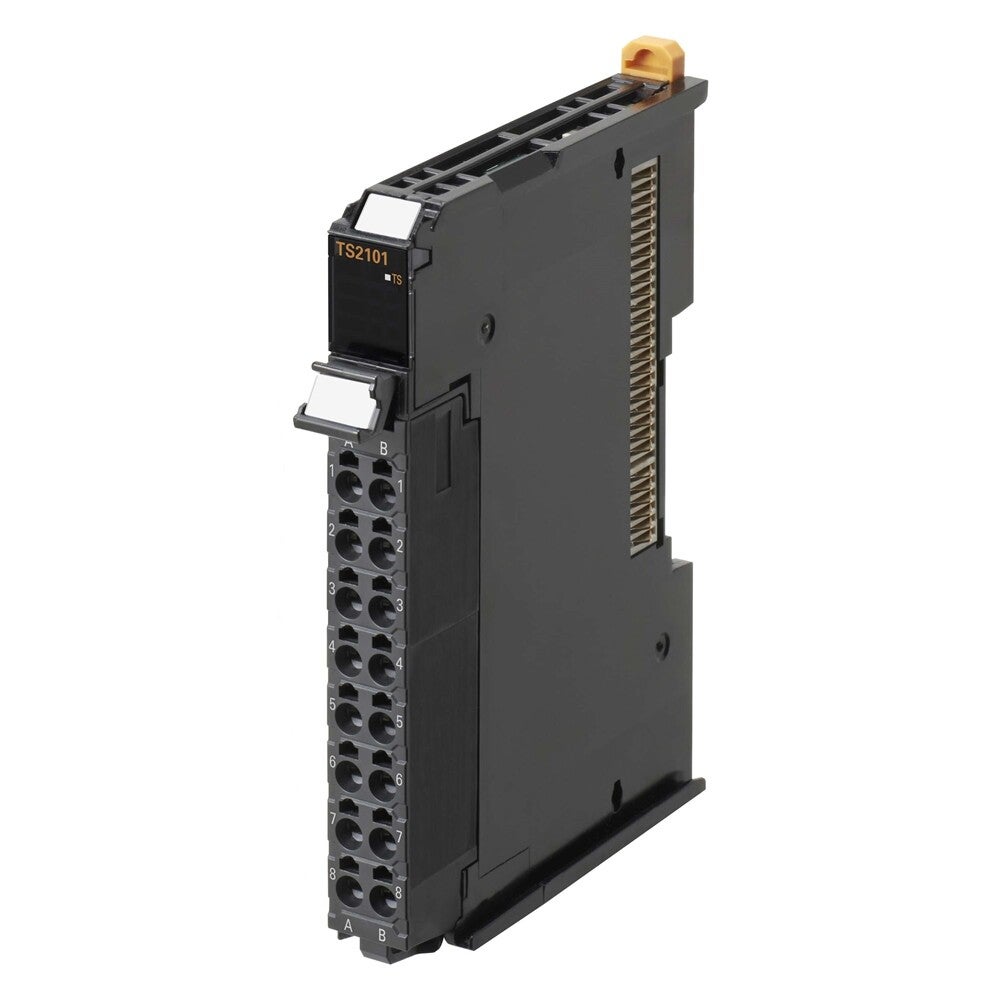

OMRON NX-TS2101
OMRON NX-TS2101 2 Thermocouple Inputs, type K, J, T, E, L, U, N, R, S, B, C(W/Re5-26), P(PLII), resolution 0.1°C, 250 ms/Unit, screwless push-in connector, 12 mm wide.
| SPECIFICATIONS | |
|---|---|
| I/O system | NX I/O Bus |
| Type of module | Analog I/O |
| Number of analog inputs | 2 |
| Temperature input type | B, C (WRe5-26), E, J, K, L, N, P (PLII), R, S, T, U |
| Linear analog input type | None |
| Resolution of the analog inputs | 14 Bit |
| Input circuit type | Differential |
| Number of analog outputs | 0 |
| Linear analog output type | None |
| Conversion time | 250 ms/unit |
| Signal processing | Free running |
| IO link master | NA |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | + |
| Suitable for safety functions | NA |
| SIL according to IEC 61508 | None |
| Degree of protection (IP) | IP20 |
| Height | 100 mm |
| Width | 12 mm |
| Depth | 80 mm |
| Weight | 70 g |
