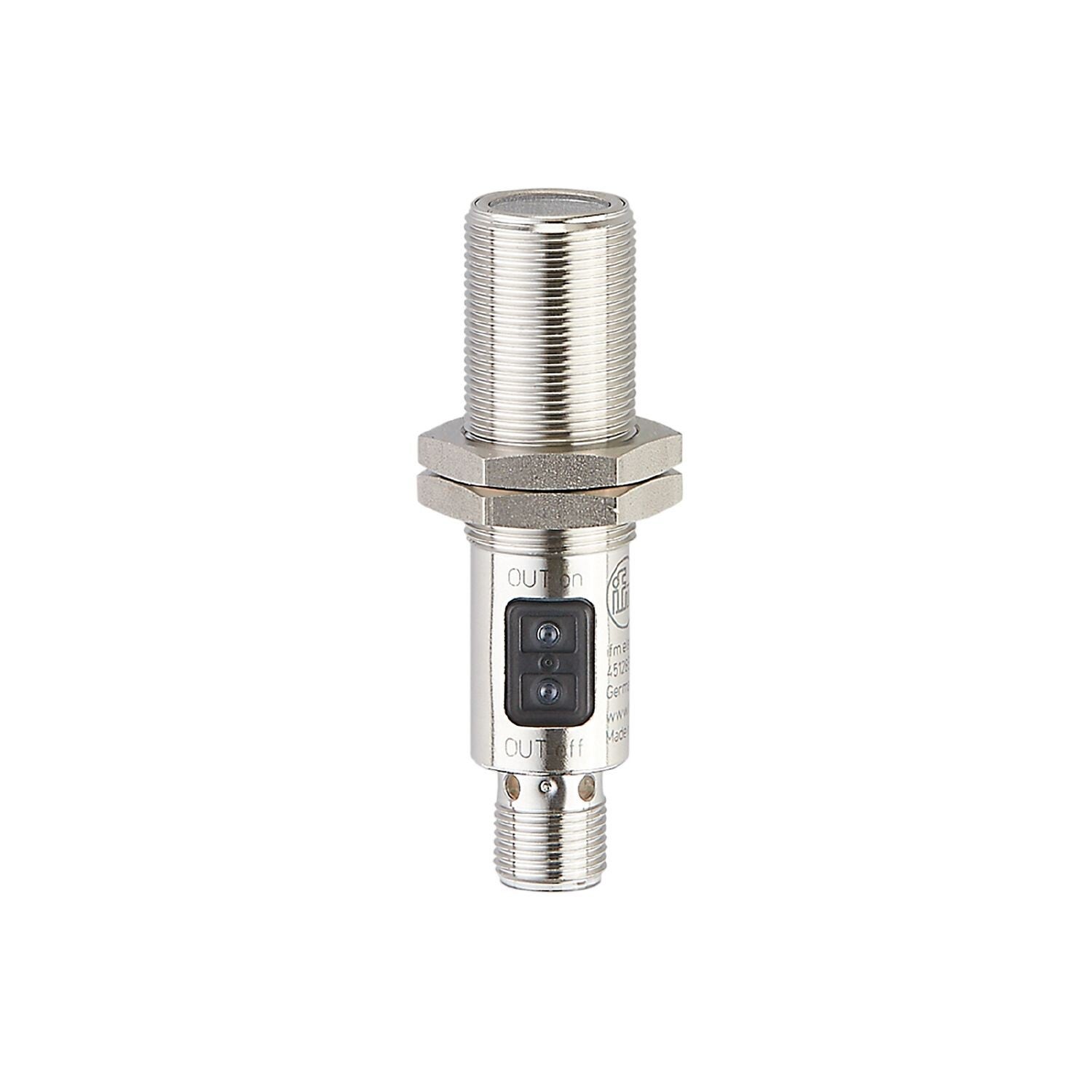

IFM OGH500
FM OGH500 Robust stainless steel housing for use in harsh industrial environments
| SPECIFICATIONS | |
|---|---|
| Type of light | red light |
| Housing | threaded type |
| Special feature | Background suppression |
| Function principle | Diffuse reflection sensor |
| Operating voltage [V] | 10…36 DC |
| Current consumption [mA] | 25 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 624 |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 150; (200 (…60 °C)) |
| Switching frequency DC [Hz] | 1000 |
| Factory setting | light-on mode |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Range [mm] | 15…300; (white paper 200 x 200 mm 90% remission) |
| Range on white object (90 % remission) [mm] | 15…300 |
| Range on grey object (18 % remission) [mm] | 15…290 |
| Range on black object (6 % remission) [mm] | 15…190 |
| Range adjustable | yes |
| Max. light spot diameter [mm] | 25 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
| Ambient temperature [°C] | -25…80 |
| Protection | IP 67 |
| Weight [g] | 61.1 |
| Housing | threaded type |
| Dimensions [mm] | M18 x 1 / L = 72 |
| Thread designation | M18 x 1 |
| Materials | stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU |
| Lens material | PMMA |
| Display | switching status1 x LED, yellow |
| Items supplied | lock nuts: 2 x |
| Remarks | operating voltage “supply class 2” according to cULus |
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A |
