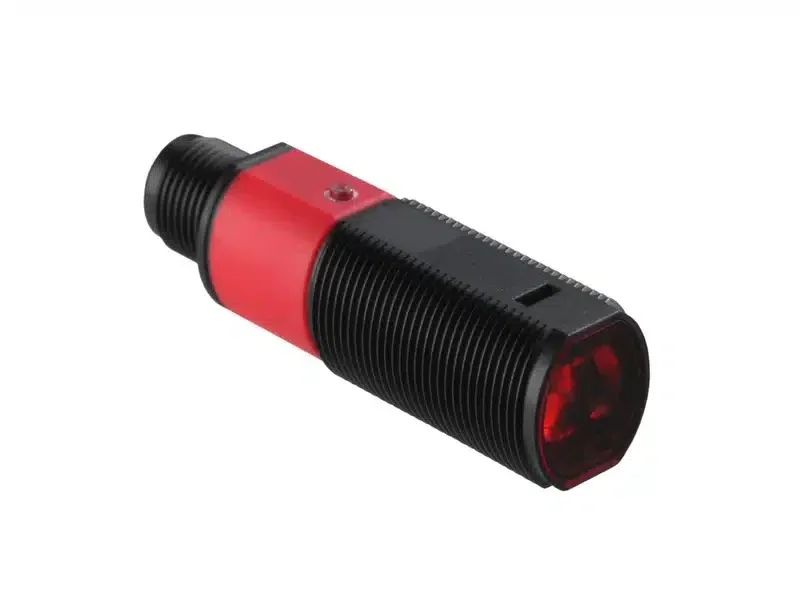

LEUZE LS318B/9D-M12
LEUZE LS318B/9D-M12 Polarity reversal protection Short circuit protected Ambient temperature, operation
| SPECIFICATIONS | |
|---|---|
| Series | 318B |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Special version | Deactivation input |
| Operating range | 0 … 10 m |
| Operating range limit | 0 … 15 m |
| Light source | LED, Red |
| Protective circuit | Polarity reversal protectionShort circuit protected |
| Supply voltage UB | 10 … 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 15 mA |
| Number of deactivation inputs | 2 Piece(s) |
| Type of connection | Connector |
| Thread size | M12 |
| Material | Plastic |
| No. of pins | 4 -pin |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 46 mm |
| Housing material | Plastic |
| Plastic housing | ABS |
| Lens cover material | Plastic |
| Net weight | 20 g |
| Ambient temperature, operation | -40 … 60 °C |
| Operating range | 0 … 10 m |
| Operating range limit | 0 … 15 m |
| Light source | LED, Red |
| Protective circuit | Polarity reversal protectionShort circuit protected |
| Supply voltage UB | 10 … 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 15 mA |
