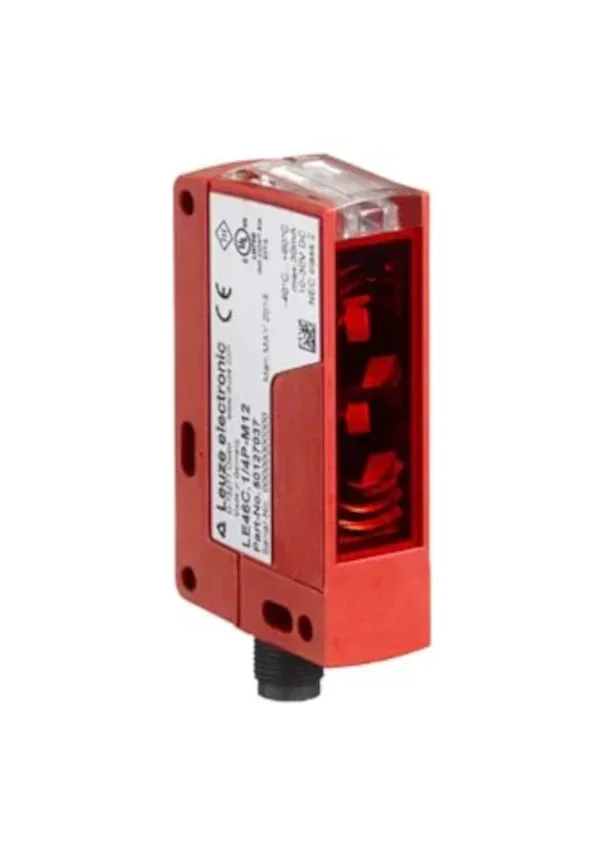

LEUZE PRK46C/4P-M12
POLARIZED RETRO-REFLECTIVE PHOTOELECTRIC SENSOR SET
LEUZE PRK46C/4P-M12 1x rod mount, diameter of 12 mm BTU 046M.25-D12 2x M4 x 25 screw
| SPECIFICATIONS | |
|---|---|
| Series | 46C |
| Operating principle | Reflection principle |
| Contains | 1x rod mount, diameter of 12 mm BTU 046M.25-D122x M4 x 25 screw |
| Special version | Article set |
| Operating range | 0.1 … 24 m, With reflector TK(S) 100×100 |
| Operating range limit | 0.1 … 30 m, With reflector TK(S) 100×100 |
| Light source | LED, Red |
| Protective circuit | Polarity reversal protectionShort circuit protectedTransient protection |
| Supply voltage UB | 10 … 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 20 mA |
| Number of digital switching outputs | 2 Piece(s) |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Type of connection | Connector |
| Thread size | M12 |
| Material | Plastic |
| No. of pins | 4 -pin |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Plastic housing | PC-PBT |
| Lens cover material | Plastic / PMMA |
| Net weight | 60 g |
| Type of fastening | Through-hole mountingVia optional mounting device |
| Compatibility of materials | ECOLAB |
| Ambient temperature, operation | -40 … 60 °C |
