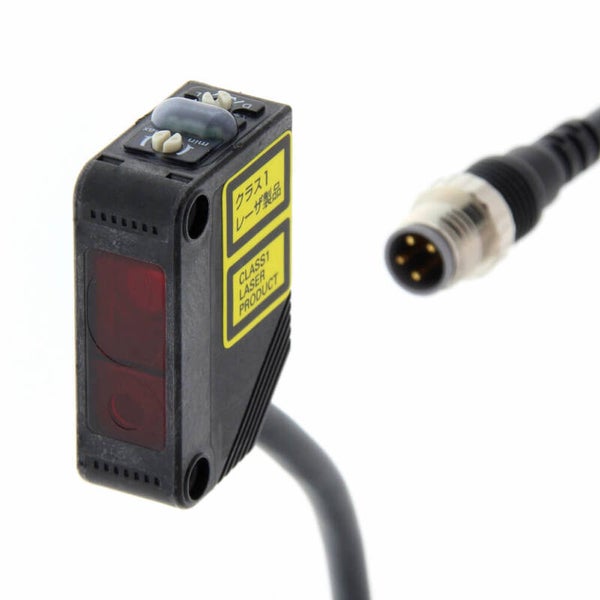

OMRON 3Z-LL81-M3J
OMRON 3Z-LL81-M3J 0.3 M OMS Photoelectric sensor, rectangular housing, red laser class 1, background suppression, 300 mm, PNP, Light-ON/Dark-ON, M8 pigtail connector 4-pin, 0.3 m
| SPECIFICATIONS | |
|---|---|
| Shape | Cuboid |
| Sensing method | Background suppression |
| Sensing distance | 300 mm |
| Sensing distance (min.) | 20 mm |
| Setting method | Manual adjustment |
| Connection method | M8 pigtail connector 4 pin |
| Cable length | 0.3 m |
| Output type | PNP |
| Operation mode | Dark-ON, Light-ON |
| Response time | 1 ms |
| Material housing | PBT |
| Thread size | Other |
| Width | 10.8 mm |
| Height | 31 mm |
| Depth | 20 mm |
| Type of light | Laser diode, red light |
| Laser class | 1 |
| Spot size | 0.5 mm |
| Power supply voltage | 12-24 V |
| Features | High precision positioning & detection |
| Degree of protection (IP) | IP67″ |
