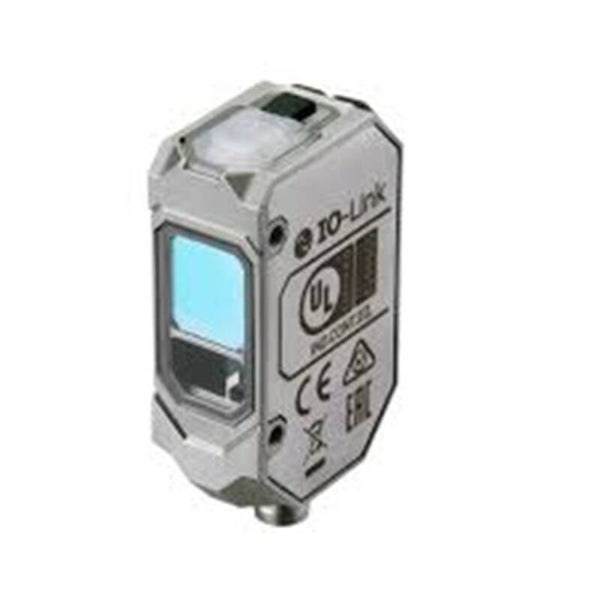

OMRON E3AS-HL500MT M3 OMS
OMRON E3AS-HL500MT M3 OMS Photoelectric sensor, rectangular housing, stainless steel, red laser class 1, background suppression, spot beam, 35-500 mm, 10-30 VDC, PNP, Light-ON/Dark-ON, IO-Link COM3, M8 connector 4-pin
| SPECIFICATIONS | |
|---|---|
| Shape | Cuboid |
| Sensing method | Background suppression |
| Sensing distance | 500 mm |
| Sensing distance (min.) | 35 mm |
| Setting method | IO-Link, Teach-In |
| Connection method | Connector M8 – 4 pin |
| Output type | IO-Link, PNP |
| Operation mode | Dark-ON, Light-ON |
| IO-Link baud rate | COM3 (230.4 kbps) |
| Response time | 1.5 ms |
| Material housing | Stainless steel |
| Width | 15.5 mm |
| Height | 48.6 mm |
| Depth | 28.9 mm |
| Type of light | Laser diode, red light |
| Laser class | 1 |
| Spot size | 2.5 mm x 1.5 mm |
| Power supply voltage | 10-30 V |
| Functions | Timer |
| Degree of protection (IP) | IP67/IP67G/IP69K |
