OMRON EE-SX670

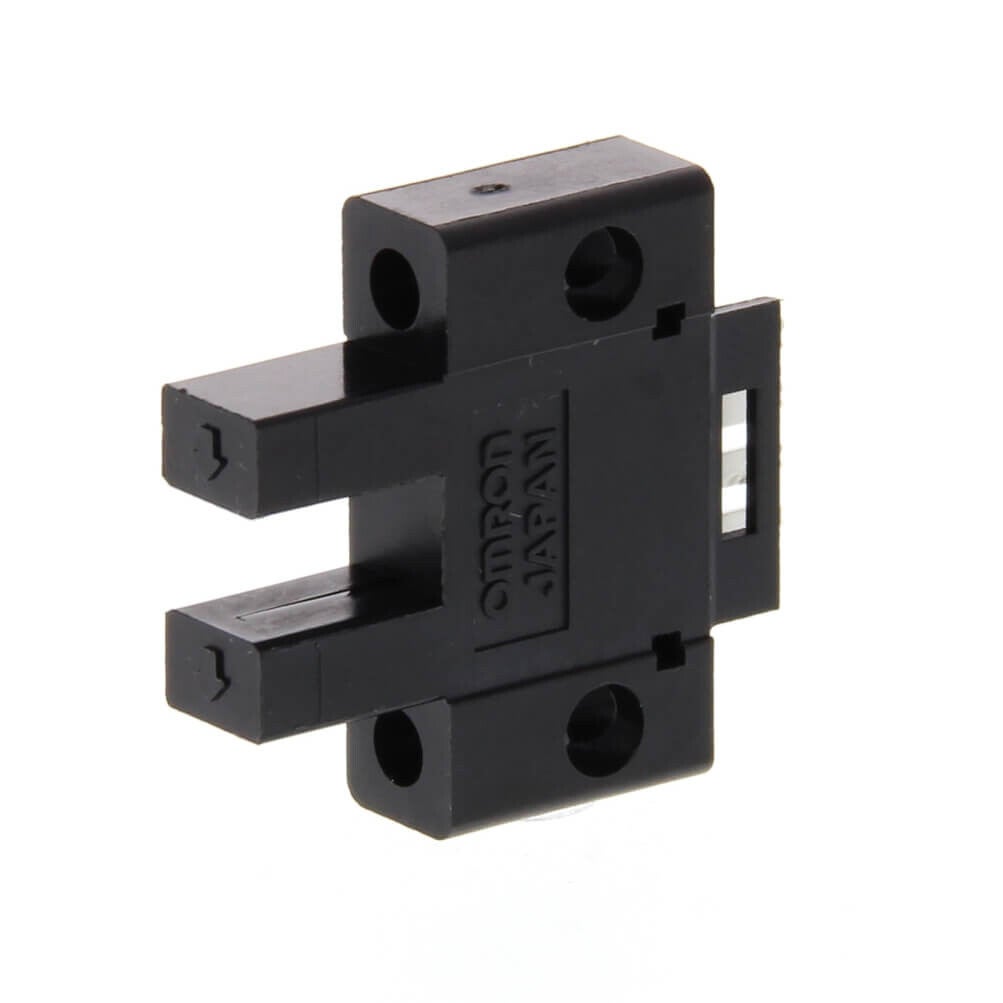

OMRON EE-SX670 Photo micro sensor, slot type, standard shape, L-ON/D-ON selectable, NPN, connector
| SPECIFICATIONS | |
|---|---|
| Shape | Straight |
| Sensing method | Through-beam with slot |
| Sensing distance | 5 mm |
| Setting method | Fixed |
| Connection method | System connector |
| Output type | NPN |
| Operation mode | Dark-ON, Light-ON |
| Response time | 0.17 ms |
| Material housing | PBT |
| Thread size | Other |
| Width | 25.4 mm |
| Height | 22.2 mm |
| Depth | 6.95 mm |
| Type of light | Infrared light |
| Power supply voltage | 5-24 V |
