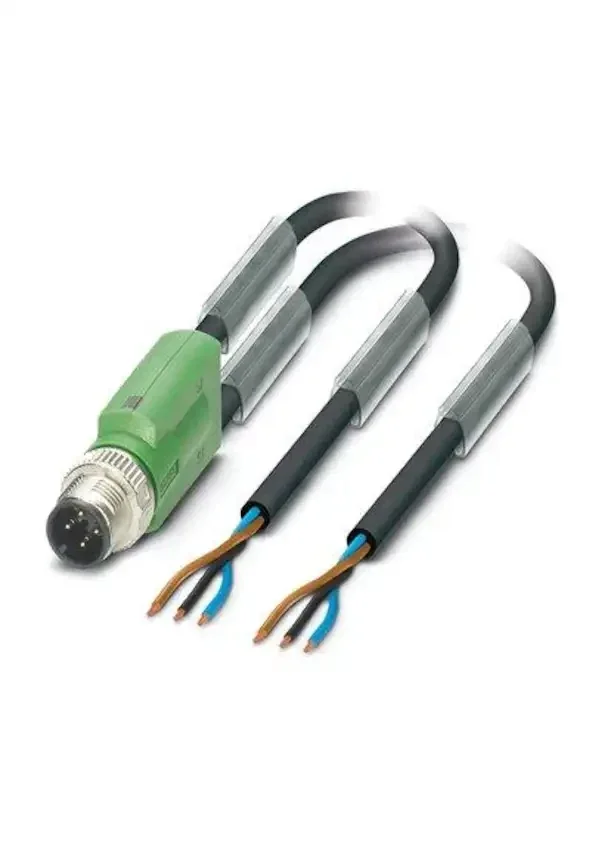

PHOENIX CONTACT SAC-3P-M12Y/2X0-3-PUR-M
Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coding: A, on Socket angled M8 and Socket angled M8, coding: A, cable length: 0.3 m
| SPECIFICATIONS | |
|---|---|
| Product type | Distributor with cable |
| Number of positions | 3 |
| Application | Standard |
| No. of cable outlets | 2 |
| Shielded | no |
| Coding | A – standard |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Tightening torque | 0.4 Nm (M12 connector) |
| 0.2 Nm (M8 connectors) | |
| Flammability rating according to UL 94 | HB |
| Sealing material | NBR |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC |
| 60 V DC | |
| Nominal current IN | 4 A |
| Insertion/withdrawal cycles | ≥ 100 |
| LED signaling | |
| Status display | No |
| Status display present | No |
| Connector | |
| Connection 1 | |
| Head design | Plug |
| Head cable outlet | straight |
| Head thread type | M12 |
| Coding | A |
| Connection 2 | |
| Head design | Socket |
| Head cable outlet | angled |
| Head thread type | M8 |
