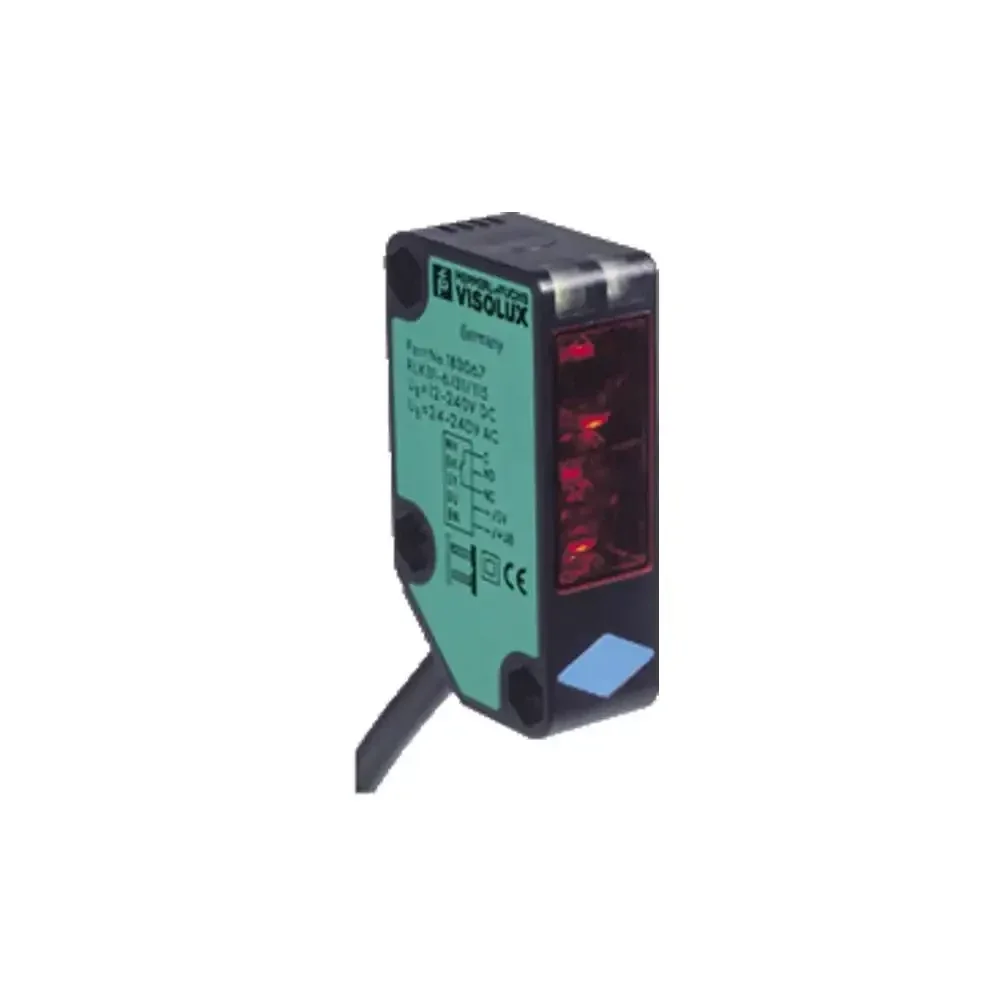

PEPPERL FUCHS RLK31-54-25-31-115
Mid-range photoelectric sensors for detecting people, objects, and vehicles
- Photoelectric sensor for detecting people, objects and vehicles
- Large construction with small housing
- Not sensitive to ambient light
- Version for universal voltages
- Relay output
- Version with accessories in scope of delivery
| Specifications | |
|---|---|
| Effective detection range | 0 … 9000 mm |
| Reflector distance | 20 … 9000 mm |
| Threshold detection range | 12 m |
| Reference target | reflector C110-2 |
| Light source | LED |
| Light type | modulated visible red light , 630 nm |
| Diameter of the light spot | approx. 200 mm at a distance of 6 m |
| Opening angle | 3 ° |
| Ambient light limit | 50000 Lux |
| Accessories provided | reflector C110-2OMH-RL31-01 mounting bracket with mounting materials |
| Effective detection range | 0 … 9000 mm |
| Reflector distance | 20 … 9000 mm |
| Threshold detection range | 12 m |
| Reference target | reflector C110-2 |
| Light source | LED |
| Light type | modulated visible red light , 630 nm |
| Diameter of the light spot | approx. 200 mm at a distance of 6 m |
| Opening angle | 3 ° |
| Ambient light limit | 50000 Lux |
| Accessories provided | reflector C110-2OMH-RL31-01 mounting bracket with mounting materials |
| MTTFd | 790 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
| Operating voltage | 24 … 240 V AC12 … 240 V DC |
| No-load supply current | ≤ 40 mA |
| Power consumption | ≤ 2 VA |
| Switching type | light-on |
| Signal output | Relay, 1 alternator |
| Switching voltage | max. 240 V AC |
| Switching current | max. 3 A |
| Switching power | DC: max. 150 W AC: max. 750 VA |
| Switching frequency | 20 Hz |
| Response time | ≤ 25 ms |
| Ambient temperature | -25 … 55 °C (-13 … 131 °F) |
| Storage temperature | -40 … 70 °C (-40 … 158 °F) |
| Degree of protection | IP67 |
| Connection | 2 m fixed cable |
| Mass | 154 g |
