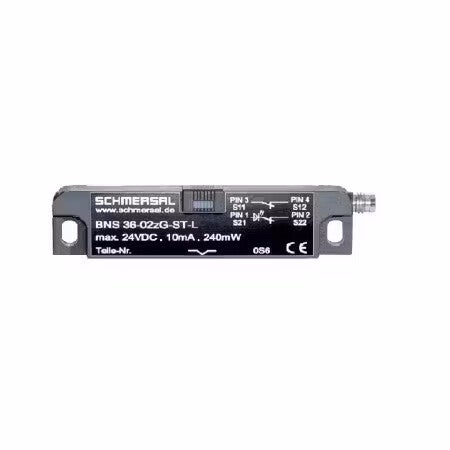

SCHMERSAL BNS 36-02ZG-ST-L
SCHMERSAL MAGMETIC SAFETY SENSOR
- Connector M8, 4-pole, Latching interlocking
- Thermoplastic enclosure
- Long life
- no mechanical wear
- 88 mm x 25 mm x 13 mm
- Concealed mounting possible
- Insensitive to transverse misalignment
- Insensitive to soiling
| Standards | BG-GS-ET-14EN IEC 60947-5-3 |
| Coding level according to EN ISO 14119 | Low |
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | quasi-flush |
| Enclosure material | Glass-fibre, reinforced thermoplastic |
| Gross weight | 37 g |
| Integral system diagnostics, status | Yes |
| Number of normally closed (NC) | 2 |
| Number of safety contacts | 2 |
| B10D Normally-closed contact (NC) | 25,000,000 Operations |
| Actuating element | Magnet |
| Door hinge | Left |
| Direction of motion | Head-on to the active surface |
| Note (Switching distance Sn) | Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the tolerance range. |
| Assured switching distance “ON” Sao | 7 mm |
| Assured switching distance “OFF” Sar | 17 mm |
| Termination | Connector M8, 4-pole, Latching interlocking |
| Length of sensor | 13 mm |
| Width of sensor | 88 mm |
| Height of sensor | 25 mm |
| Degree of protection | IP67 |
| Ambient temperature, minimum | -25 °C |
| Ambient temperature, maximum | +70 °C |
| Storage and transport temperature, minimum | -25 °C |
| Storage and transport temperature, maximum | +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Switching voltage, maximum | 24 VDC |
| Switching current, maximum | 0.01 A |
| Switching capacity, maximum | 0.2 W |
| Switching frequency, maximum | 5 Hz |
