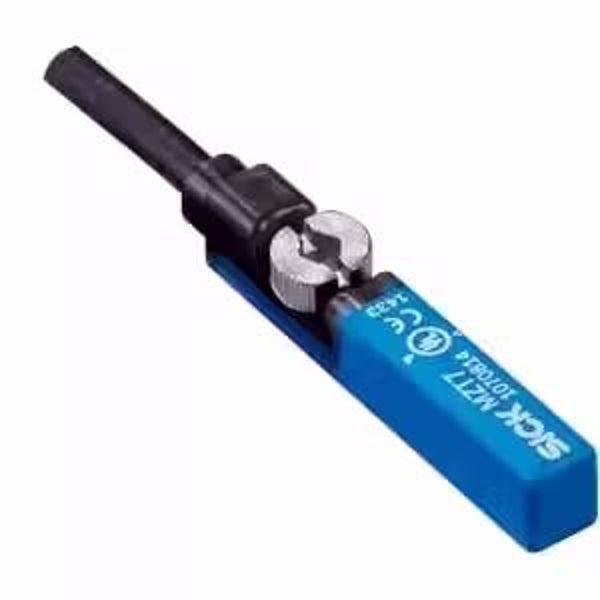

SICK MZT7-03VPS-KW0
| SPECIFICATIONS | |
|---|---|
| cylindrical structure | T-slot |
| Cylinder structures with adapters | Cylinder with profile bartie-rod cylinderround cylinderCylinder with dovetail slotCDQ2 SMC railECDQ2 SMC rail |
| body length | 29,5 mm |
| Switching output | PNP |
| Switching frequency | 1.000 Hz |
| Output function | normally open |
| electrical wiring | DC 3 telli |
| Protection class | IP65 1)IP67 |
| Supply voltage | 10 V DC … 30 V DC |
| Current consumption | 8 mA, No Load |
| voltage drop | ≤ 2 V |
| Continuous current I a | ≤ 100 mA |
| Protection class | III |
| Medicine. sensitivity. | 3 mT |
| Type oversensing distance. | 10 mm |
| Tip. hysteresis | < 0,8 mT |
| Repeatability | ≤ 0,1 mT 1) |
| Switching status LED | ✔ |
| Reverse polarization protection | ✔ |
| Short circuit protection | ✔ |
| Working environment temperature | –30 °C … +70 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 … 55 Hz, 1 mm |
| Cross wiring | 0,12 mm² |
| cable diameter | Ø 2,9 mm |
| bending radius | In fixed installation > 10 x cable diameter |
| In motion > 15 x cable diameter | |
| Body | Plastic |
| Cable | PVC |
