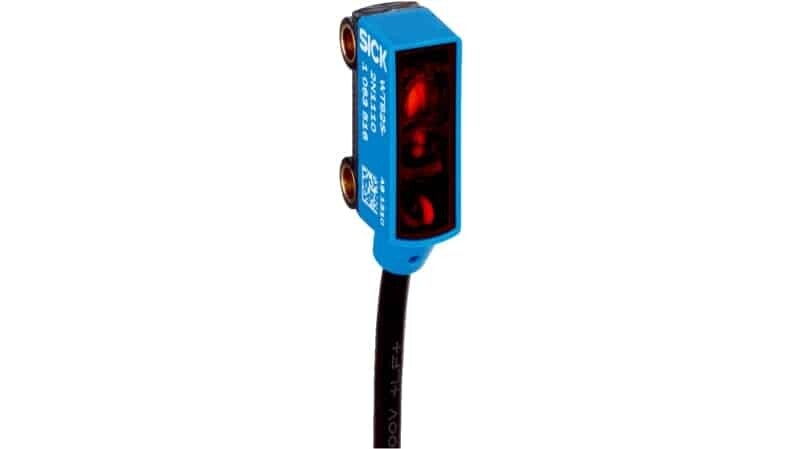

SICK WTB2S-2F1430
SICK WTB2S-2F1430 Object with 90 % reflectance (referred to standard white, DIN 5033). Average service life: 100,000 h at TU = +25 °C.
| SPECIFICATIONS | |
|---|---|
| Device type | Photoelectric sensors |
| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 7.7 mm x 21.8 mm x 13.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 1 mm … 36 mm 1) |
| Sensing range | 3 mm … 30 mm 1) |
| Background suppression typ. from | 38 mm |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | Ø 3 mm (15 mm) |
| Wave length | 640 nm |
| Adjustment | None |
| Special applications | Detecting small objects |
| Supply voltage | 10 V DC … 30 V DC 1) |
| Ripple | < 5 Vpp 2) |
| Current consumption | 20 mA 3) |
| Switching output | PNP |
| Switching mode | Dark switching |
| Output current Imax. | ≤ 50 mA |
| Response time | < 0.4 ms 4) |
| Switching frequency | 1,200 Hz 5) |
| Connection type | Cable, 3-wire, 5 m 6) |
| Cable material | PVC |
| Cable diameter | Ø 3 mm |
| Circuit protection | A 7)B 8)D 9) |
| Housing material | Plastic, ABS/PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C … +50 °C |
| Ambient temperature, storage | –40 °C … +75 °C |
| UL File No. | NRKH.E181493 |
