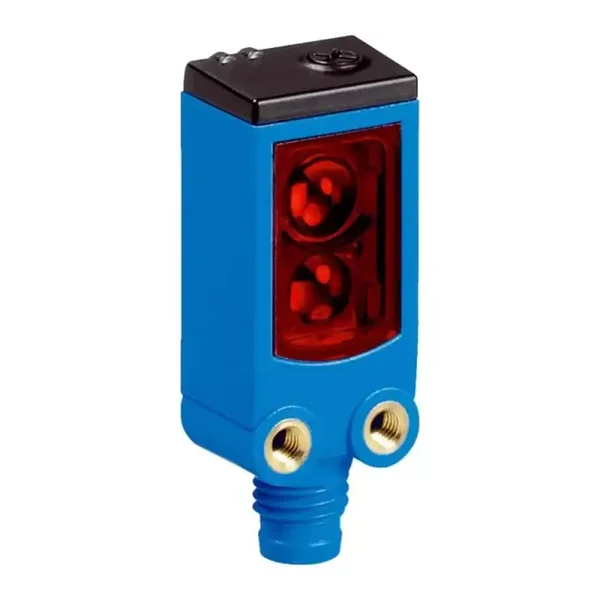

SICK WTB4-3P3161
SICK WTB4-3P3161 Photoelectric proximity sensor, Background suppression Photoelectric sensors
| SPECIFICATIONS | |
|---|---|
| Device type | Photoelectric sensors |
| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 16 mm x 39.5 mm x 12 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 4 mm … 150 mm 1) |
| Sensing range | 15 mm … 150 mm 1) |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | Ø 7 mm (50 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 5 turns |
| Special applications | Detecting small objects |
| 1) Object with 90% remission (based on standard white, DIN 5033). | |
| 2) Average service life: 100,000 h at TU = +25 °C. | |
| Supply voltage | 10 V DC … 30 V DC 1) |
| Ripple | < 5 Vpp 2) |
| Current consumption | 20 mA 3) |
| Switching output | PNP |
| Switching mode | Light switching |
| Output current Imax. | ≤ 100 mA |
| Response time | < 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Cable with connector M8, 3-pin, 100 mm 6) |
| Cable material | PVC |
| Conductor cross-section | 0.14 mm² |
| Cable diameter | Ø 3.4 mm |
| Circuit protection | A 7)C 8)D 9) |
| Protection class | III |
| Weight | 30 g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67IP66 |
| Ambient operating temperature | –40 °C … +60 °C |
| Ambient temperature, storage | –40 °C … +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
