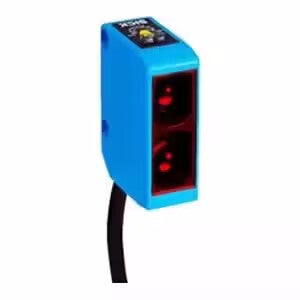

SICK WTB8-P1131
SICK WTB8-P1131 Sensor/ detection principle Photoelectric proximity sensor, Background suppression
| SPECIFICATIONS | |
|---|---|
| Device type Photoelectric sensors | |
| Sensor/ detection principle Photoelectric proximity sensor, Background suppression | |
| Sensor/ detection principle Photoelectric proximity sensor, Background suppression | |
| Dimensions (W x H x D) 11 mm x 31 mm x 20 mm | |
| Housing design (light emission) Rectangular | |
| Sensing range max. 30 mm … 300 mm 1) | |
| Sensing range 40 mm … 300 mm 1) | |
| Type of light Visible red light | |
| Light source LED 2) | |
| Light spot size (distance) Ø 20 mm (300 mm) | |
| Wave length 650 nm | |
| Adjustment Potentiometer, 4 turns | |
| Current consumption 30 mA 3) | |
| Switching output PNP | |
| Switching mode Light/dark switching | |
| Switching mode selector Selectable via light/dark rotary switch | |
| Signal voltage PNP HIGH/LOW Approx. VS – 1.8 V / 0 V | |
| Output current Imax. ≤ 100 mA | |
| Response time ≤ 0.5 ms 4) | |
| Switching frequency 1,000 Hz 5) | |
| Connection type Cable, 3-wire, 2 m 6) | |
| Cable material PVC | |
| Weight 50 g | |
| Housing material Plastic, ABS | |
| Optics material Plastic, PMMA | |
| Enclosure rating IP67 | |
| Items supplied Stainless steel mounting bracket (1.4301/304) BEF-W100-A | |
| Ambient operating temperature –25 °C … +55 °C | |
| Ambient temperature, storage –40 °C … +70 °C |
