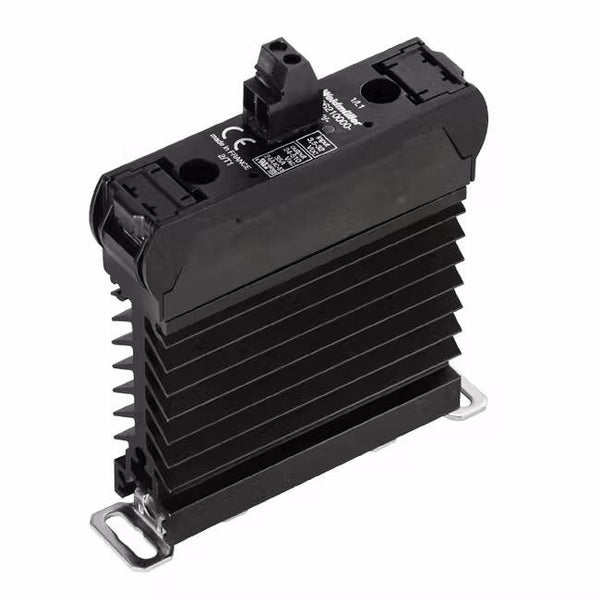

WEIDMULLER PSSR 24VDC1PH AC 25A
WEIDMULLER PSSR 24VDC1PH AC 25A
| WEIDMULLER PSSR 24VDC1PH AC 25A | |
|---|---|
| Version | Power Solid-State Relais, Solid state contactor, Rated control voltage: 3.5…32 V DC , Rated switching voltage: 12…275 V AC, Continuous current: 17 A (AC51) at 40 °C, 3.5 A (AC 53), Screw connection |
| Order No. | 1406200000 |
| Type | PSSR 24VDC/1PH AC 25A |
| GTIN (EAN) | 4050118206821 |
| Qty. | 1 pc(s). |
| Depth | 115.9 mm |
| Depth (inches) | 4.563 inch |
| Height | 98 mm |
| Height (inches) | 3.858 inch |
| Width | 22.5 mm |
| Width (inches) | 0.886 inch |
| Net weight | 244 g |
| Storage temperature | -55 °C…125 °C |
| Operating temperature | -55 °C…100 °C |
| Operating temperature, min. | -55 °C |
| Operating temperature, max. | 100 °C |
| Humidity | 40…85 % (indoor) no condensation |
| Rated switching voltage | 12…275 V AC |
| Continuous current | 17 A (AC51) at 40 °C, 3.5 A (AC 53) |
| Max. switching current | 25 A |
| Load category | AC 51, AC 53 |
| Inrush current | 140 A (10 ms) |
| Pulse load, max. current | 250 A (10 ms), non-recurrent |
| Load limit integral (I²t) <10 ms | 340 A2s |
| Switch-on delay | ≤ 10 ms |
| Switch-off delay | ≤ 10 ms |
| Voltage drop at max. load | ≤1.25 V |
| Leakage current | ≤ 1 mA |
| Min. switching current | 5 mA |
| Short-circuit-proof | No |
| Protective circuit, load side | Varistor |
| Contact type | 1 NO contact (Triac (zero-cross switch)) |
| Output voltage frequency range | 50…60 Hz |
| max. switching frequency (DC control voltage) | 10 Hz |
