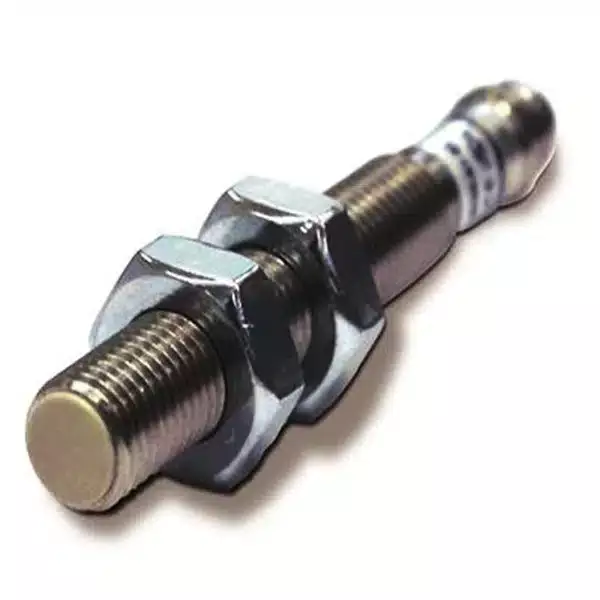

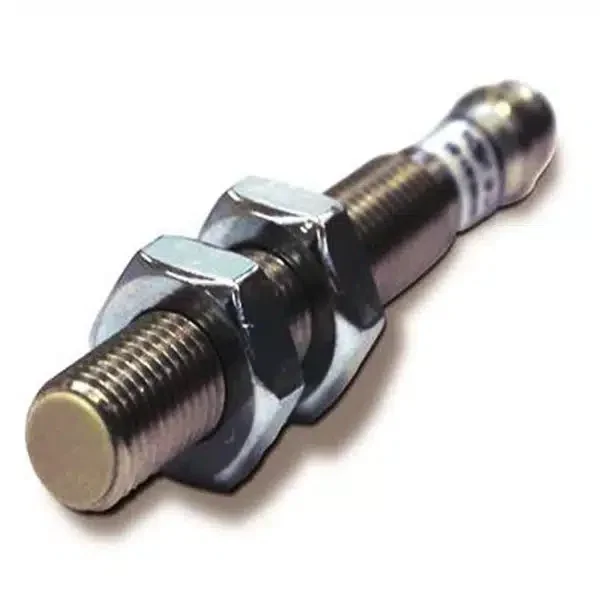

DATALOGIC IS-08-B1-S1
The inductive proximity sensor from the basic series was in the classic cylindrical shape made of nickel-plated brass. They are able to metal objects at a distance in a given area. This product series was developed in the following application areas for the requirements: fully automatic machines, packaging lines, conveyor lines, the automotive industry, and automatic bearings.
| SPECIFICATIONS | ||||
|---|---|---|---|---|
| PH | IS M8 | Type | IS-08-B1-S1 | |
| MODEL | IS-08-B1-S1 | Min. operating voltage | 10 V DC | |
| ORDER No | 95B066860 | Max. operating voltage | 30 V DC | |
| Proximity type | INDUCTIVE | Operating voltage | 10 – 30 V DC | |
| Case diameter | d) M8 | Outputs | PNP | |
| Proximity line | STANDARD | Switching distance (max.) | 1.5 mm | |
| Sensing range | b) 1,5 mm | Switching frequency | 1000 Hz | |
| Mounting type | FLUSH | Features | LED indicator | |
| Power supply | 10…30 Vdc | Connector | M8 (3-pin) | |
| Output type | PNP, N.O., 3 wires | Installation type | shielded | |
| Connection type | M8 Connector | Size | M8 | |
| Case material | Metal, short | Material properties | nickel plated | |
| F13 | NULL | Enclosure material | Brass | |
| F14 | NULL | Contact type | 1 maker | |
| IP rating | IP67 | |||
| Min. temperature | -25 °C | |||
| Max. temperature | +70 °C | |||
| Length | 49.9 mm | |||
| (Ø) | 8 mm | |||
| Dim | (Ø x L) 8 mm x 49.9 mm | |||
| Content | 1 pc(s) | |||
| Type | IS-08-B1-S1 | |||
| Product type | Inductive proximity sensor |
